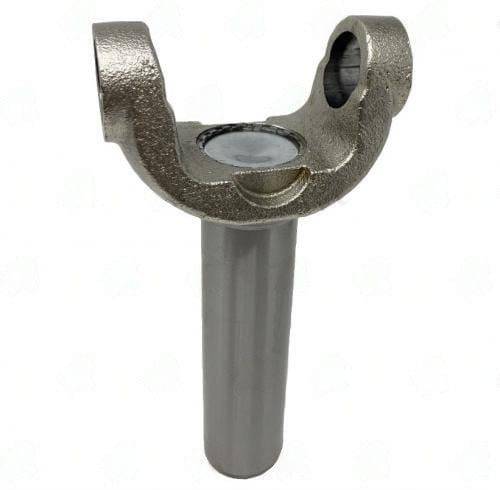

4103-302 Transmission Slip Yoke, 3-3-4181X Fits 1410 Series – 29/30 Splines x 1.284 Spline Dia | 3-3-4851X
$94.51
1 in stock
Description
4103-302 1410 series nickel-plated slip yoke, Spicer 3-3-4181X cross, 29/30-spline x 1.312″, 8.340″ C/U-joint to end, 1.440″ counterbore.
Full Description
4103-302 -- 1410 Series Nickel-Plated Slip Yoke, 3-3-4181X Cross-Reference
The Spicer cross-reference 3-3-4181X is a widely stocked OEM number covering this 1410 slip yoke across many domestic truck and van applications. The 1.440" counterbore provides a precise piloting fit against the output bearing retainer -- an installation verification step: the counterbore should slip over the retainer with no more than 0.002-0.005" of clearance. A sloppy fit indicates either the wrong yoke or a worn retainer OD that needs replacement.
The 29/30-spline x 1.312" profile is the same as found on several Chrysler and Dodge transmission yokes (compare with 4103-301) -- the counterbore on 4103-302 versus no counterbore on 4103-301 is the distinguishing feature. The nickel plating provides corrosion resistance; inspect the hub sealing surface for any plating damage before installation. Pair with a 1410 series U-joint and a properly sized output seal.
Additional information
| Center u joint to end | 8.340 |
|---|---|
| Counter bore dia | 1.440 |
| Hub dia | 1.681 |
| Notes | Nickel Plated w/c’bore at end |
| Partn number | 4103-302 |
| Series | 1410 |
| Splines count dia | 29/30 X 1.284 |
