Spline Stub 1.750×16 Spline, 3.500 X .095 Tube – 4-53-61 – UDS
$59.87
23 in stock
10
People watching this product now!
Description
4-53-61 UDS slip spline stub, 16×1.750″ spline, fits 3.500″x0.095″ tube, 3.312″ butt dia, 5.938″ spline length, 8.562″ end-to-weld.
Full Description

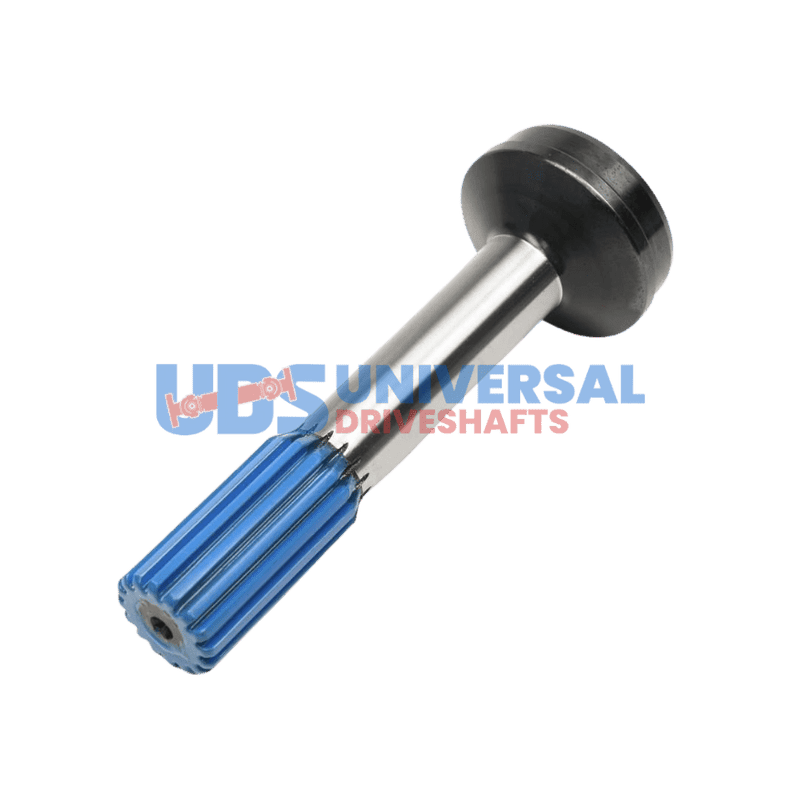

4-53-61 UDS Spline Stub 1.750x16 Spline 3.500x0.095 Tube Slip Style
The 4-53-61 is a UDS slip-style spline stub shaft designed for 3.500" OD x 0.095" wall driveshaft tube. The spline spec is 16 splines at 1.750" diameter. The butt diameter is 3.312", spline length is 5.938", and end-to-weld is 8.562". This stub shaft provides the splined end onto which a slip yoke engages, functioning as the intermediate connection point in a two-piece driveshaft assembly.
Specifications
- Part Number: 4-53-61
- Brand: UDS
- Style: Slip
- Tube Diameter: 3.500"
- Tube Wall: 0.095"
- Spline Count x Diameter: 16 x 1.750"
- Butt Diameter: 3.312"
- Spline Length: 5.938"
- End to Weld: 8.562"
When fitting the 4-53-61, the slip yoke that engages this stub must have matching 16-spline, 1.750" spline bore — such as the 4-3-1431KX (1550 series) or equivalent. The 5.938" spline length governs maximum engagement depth of the slip yoke; ensure adequate engagement remains at full suspension droop. The 3.312" butt diameter establishes the tube seating shoulder for the 3.500"x0.095" tube being welded on.
The 4-53-61 welds into a 3.500" OD x 0.095" wall tube at the 8.562" end-to-weld dimension. Confirm tube OD and wall thickness before welding — a 3.500" tube with a different wall thickness will not seat correctly against the 3.312" butt. Verify the mating slip yoke spline count is 16 and bore diameter is 1.750" before assembly.
Additional information
| Butt dia | 3.312 |
|---|---|
| Splines length | 5.938 |
| End to weld | 8.562 |
| Brand | UDS |
| Tube dia | 3.500 |
| Tube wall | 0.095″ |
| Splines count dia | 16 X 1.750 |
| Style | Slip |
