3R-28-437 Weld Tube Yoke 3R , Fits: 3.000x 0.083 Tube , Butt: 2.844 Inch Centerline To Weld: 1.875
$29.30
12 in stock
18 People watching this product now!
Description
3R-28-437 UDS 3R series steel weld tube yoke. Fits 3.000″x0.083″ tube, 2.844″ butt diameter, 1.875″ CJ-to-weld. The GM-specific 3R series — not interchangeable with 1310 or 1350 U-joints.
Full Description

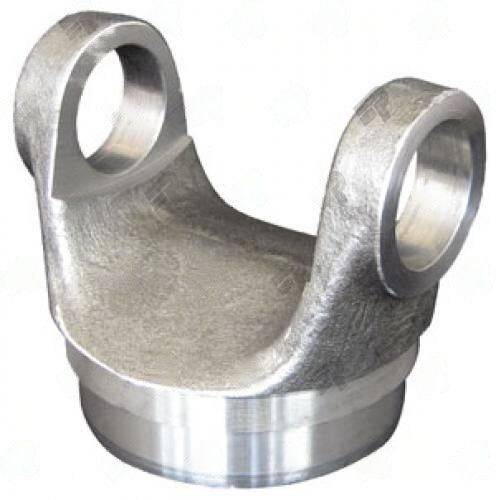

3R-28-437 -- UDS 3R Series Weld Yoke, 3.000"x0.083" Tube, 2.844" Butt Diameter
The 3R series is General Motors' proprietary driveshaft standard, developed for GM 3/4-ton and 1-ton trucks in the GMT400 platform era. It sits between 1310 and 1350 in torque capacity but uses its own distinct U-joint with different cap dimensions than either standard Spicer series. This matters because a 3R U-joint will not interchange with a 1310 or 1350 joint -- if you're sourcing U-joints for a 3R driveshaft, they must be specifically catalogued as 3R series.
The 3R-28-437 is the weld yoke for this series: it welds onto a 3.000-inch OD tube with 0.083-inch wall thickness. Butt diameter is 2.844 inches -- the outer dimension of the weld joint face. Center-of-U-joint to weld face runs 1.875 inches. Steel construction. Before welding, confirm tube OD and wall: a tube with 3.000-inch OD but 0.120-inch wall (common upgrade) will not seat correctly in this yoke.
- Part Number: 3R-28-437
- Brand: UDS
- Series: 3R (GM-specific)
- Tube: 3.000" OD x 0.083" wall
- Butt Diameter: 2.844"
- CJ to Weld: 1.875"
- Material: Steel
If upgrading this driveshaft assembly to a more common series, note that the 3R yoke ears and U-joints must all change together -- you cannot mix 3R and 1310/1350 components. View all Weld Yokes including 3R, 1310, 1350, and heavy-duty series.
Additional information
| Butt dia | 2.844 |
|---|---|
| Center u j to weld | 1.875 |
| Material | STEEL |
| Partn number | 3R-28-437 |
| Series | 3R |
| Tube dia wall | 3.000X0.083 |
| Brand | UDS |
