Splined Midship Tube Shaft Splines: 1.500 x 10 , Fits: 3.500 X .095 Tube 4-53-361
$57.26
20 in stock
20
People watching this product now!
Description
4-53-361U UDS fixed midship shaft. 10 x 1.500″ spline, fits 3.500″ OD x 0.095″ wall tube, 1.574″ bearing dia, 4.031″ end-to-weld. Fixed style — pairs with 4-4-7901-2U end yoke.
Full Description

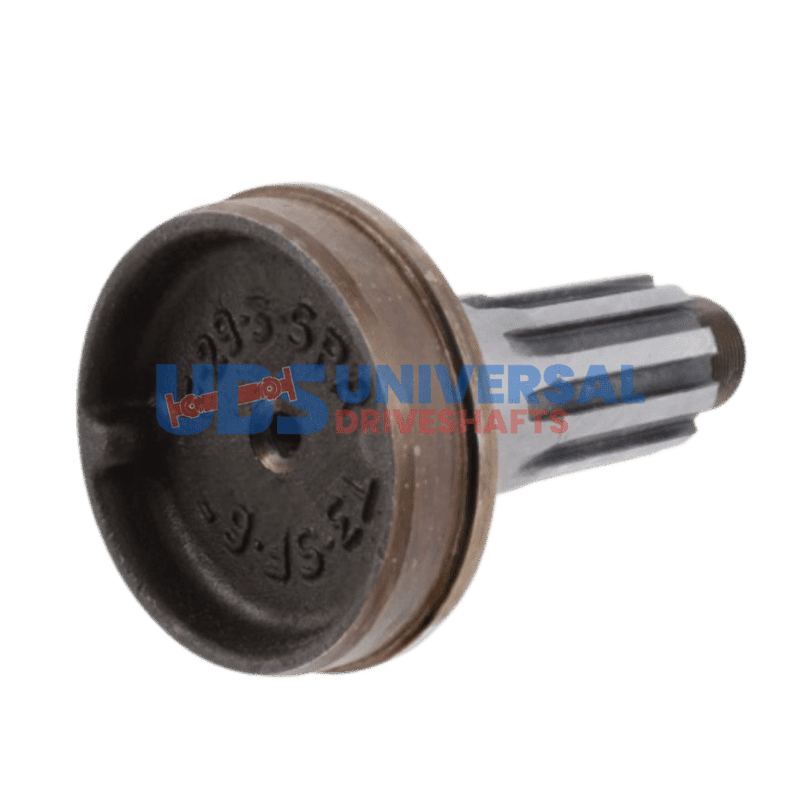

4-53-361U UDS Splined Midship Tube Shaft — 1.500" x 10 Spline, 3.500" x 0.095" Tube
The 4-53-361U is a fixed-style splined midship tube shaft manufactured by UDS. It features a 10-spline bore at 1.500 inches in diameter with a spline length of 2.000 inches. The shaft is designed for a 3.500-inch OD tube with a 0.095-inch wall. The butt diameter is 3.312 inches, the end-to-weld dimension is 4.031 inches, and the bearing diameter is 1.574 inches. This part is also referenced in the 4-4-7901-2U end yoke notes for midship spline applications.
Specifications
- Part Number: 4-53-361U
- Brand: UDS
- Style: Fixed
- Spline Count x Diameter: 10 x 1.500"
- Spline Length: 2.000"
- Tube OD: 3.500"
- Tube Wall: 0.095"
- Butt Diameter: 3.312"
- End to Weld: 4.031"
- Bearing Diameter: 1.574"
When fitting the 4-53-361U, confirm the mating component engages with 10 splines at 1.500-inch diameter. This is a fixed (non-slip) midship shaft — the spline end is a fixed connection point. Verify the tube is 3.500-inch OD x 0.095-inch wall before welding, and confirm the center support bearing ID is 1.574 inches.
The 4-53-361U is referenced as the correct midship spline component for use with the 4-4-7901-2U 1550 series end yoke. The 4.031-inch end-to-weld length and 2.000-inch spline length make this a compact midship shaft suited to applications where overall two-piece driveshaft length is constrained.
Additional information
| Tube dia | 3.500 |
|---|---|
| Tube wall | 0.095″ |
| Butt dia | 3.312 |
| Splines length | 2.000 |
| End to weld | 4.031 |
| Bearing dia | 1.574 |
| Brand | UDS |
| Splines count dia | 10 X 1.500 |
| Style | FIXED |
