Splined Midship Tube Shaft Splines: 1.500 x 10 , Fits: 3.000 X .083 Tube 3-53-1811
$37.03
24 in stock
20
People watching this product now!
Description
3-53-1811U UDS fixed midship shaft. 10 x 1.500″ spline, fits 3.000″ OD x 0.083″ wall tube, 1.574″ bearing dia, 4.000″ end-to-weld. Fixed style — not a slip joint.
Full Description

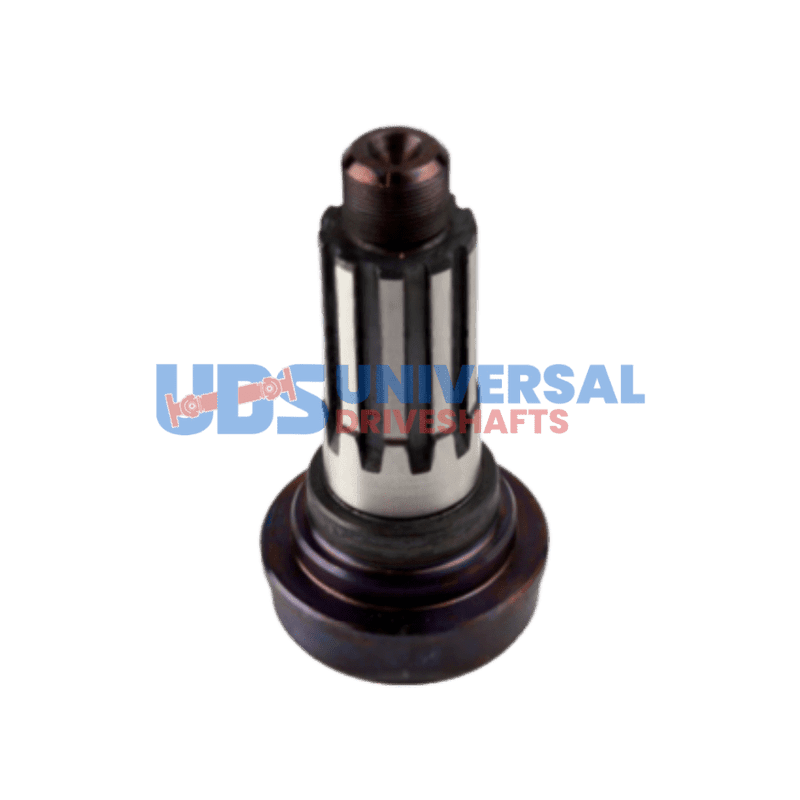

3-53-1811U UDS Splined Midship Tube Shaft — 1.500" x 10 Spline, 3.000" x 0.083" Tube
The 3-53-1811U is a fixed-style splined midship tube shaft manufactured by UDS. It features a 10-spline bore at 1.500 inches in diameter with a spline length of 1.844 inches. The shaft is designed for a 3.000-inch OD tube with a 0.083-inch wall. The butt diameter is 2.844 inches, the end-to-weld dimension is 4.000 inches, and the bearing diameter is 1.574 inches.
Specifications
- Part Number: 3-53-1811U
- Brand: UDS
- Style: Fixed
- Spline Count x Diameter: 10 x 1.500"
- Spline Length: 1.844"
- Tube OD: 3.000"
- Tube Wall: 0.083"
- Butt Diameter: 2.844"
- End to Weld: 4.000"
- Bearing Diameter: 1.574"
When fitting the 3-53-1811U, confirm the mating component uses a 10-spline bore at 1.500 inches in diameter. As a fixed-style shaft, this midship does not slide — the spline interface is a fixed engagement point, not a slip joint. Verify the tube is 3.000-inch OD x 0.083-inch wall before welding.
The center support bearing bore diameter of 1.574 inches must match the bearing ID selected for this midship shaft. The compact 4.000-inch end-to-weld dimension and 1.844-inch spline length make the 3-53-1811U suited to short midship configurations in two-piece driveshaft assemblies.
Additional information
| Tube dia | 3.000 |
|---|---|
| Tube wall | 0.083″ |
| Butt dia | 2.844 |
| Splines length | 1.844 |
| End to weld | 4.000 |
| Bearing dia | 1.574 |
| Brand | UDS |
| Style | FIXED |
| Splines count dia | 10 X 1.500 |
