Spline Stub 1.750×16 Spline, 3.500 X .095 Tube – 4-40-721 – UDS
$70.69
23 in stock
19
People watching this product now!
Description
4-40-721U UDS slip spline stub. 16 x 1.750″ spline, 3.000″ spline length, fits 3.500″ OD x 0.095″ wall tube, 3.312″ butt dia, 9.219″ end-to-weld.
Full Description

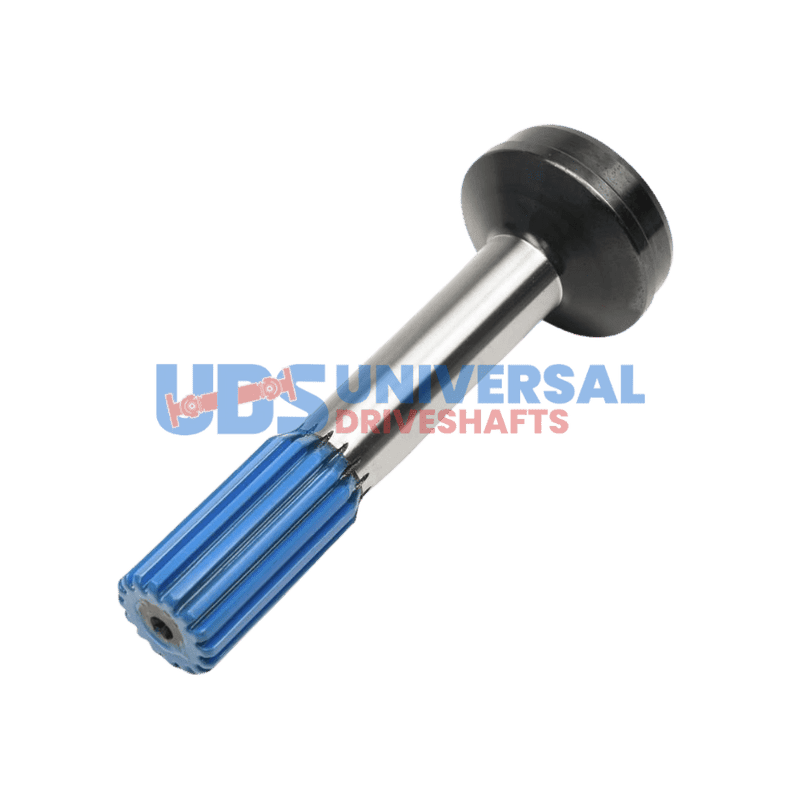

4-40-721U UDS Spline Stub — 1.750" x 16 Spline, 3.500" x 0.095" Tube
The 4-40-721U is a slip-style spline stub manufactured by UDS. It features a 16-spline bore at 1.750 inches in diameter with a spline length of 3.000 inches. The stub is designed for a 3.500-inch OD tube with a 0.095-inch wall. The butt diameter is 3.312 inches and the end-to-weld dimension is 9.219 inches.
Specifications
- Part Number: 4-40-721U
- Style: Slip
- Spline Count x Diameter: 16 x 1.750"
- Spline Length: 3.000"
- Tube OD: 3.500"
- Tube Wall: 0.095"
- Butt Diameter: 3.312"
- End to Weld: 9.219"
When fitting the 4-40-721U, confirm the mating slip yoke bore is 16 splines at 1.750-inch diameter, and verify the driveshaft tube is 3.500-inch OD with a 0.095-inch wall before welding. The 3.000-inch spline length sets the maximum engagement depth available with the mating slip yoke — check this against the required suspension travel.
The 9.219-inch end-to-weld dimension is the total stub shaft length from the splined end to the weld point. This longer stub is suited to two-piece driveshaft assemblies where the stub must extend further to accommodate the midshaft geometry. Confirm the tube ID matches the 3.312-inch butt diameter before completing the weld.
Additional information
| Tube dia | 3.500 |
|---|---|
| Tube wall | 0.095″ |
| Butt dia | 3.312 |
| Splines length | 3.000 |
| End to weld | 9.219 |
| Splines count dia | 16 X 1.750 |
| Style | Slip |
