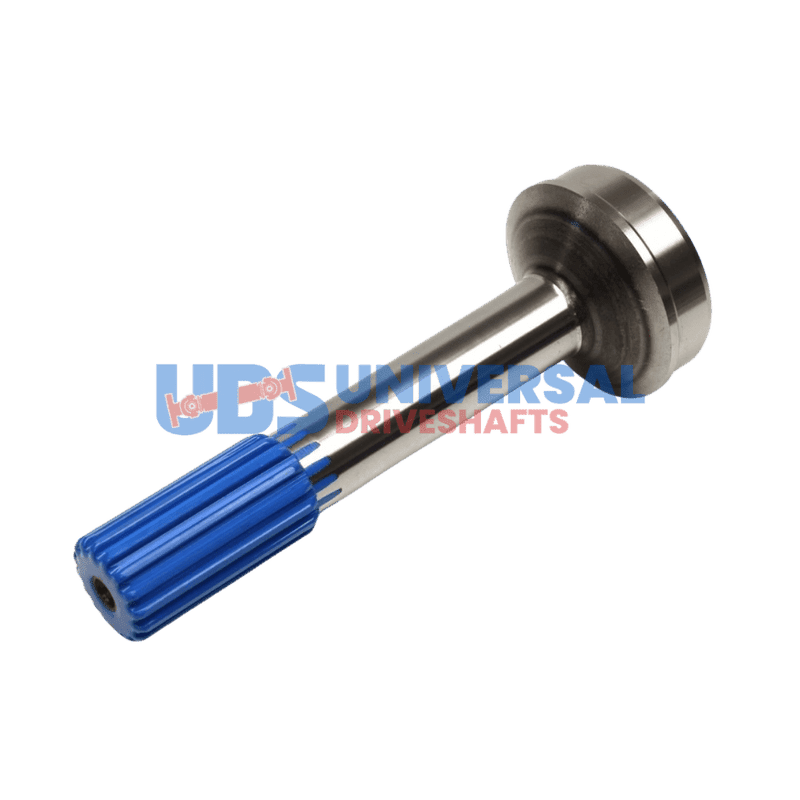

Spline Stub 1.562×16 Spline, Fits: 3.500 X .083 Tube – 3-40-1871 – UDS Brand
$65.67
12 in stock
Description
Part 3-40-1871U is a series stub & midship shaft from Universal Driveshafts, engineered to OEM tolerances for reliable drivetrain performance. In stock and available for fast shipping.
Full Description
3-40-1871U -- Series Stub & Midship Shaft
The 3-40-1871U is a series stub & midship shaft engineered to OEM-equivalent tolerances for reliable drivetrain performance. Universal Driveshafts supplies this part for applications where the stock component is no longer available from OEM channels or where a custom build requires a proven off-the-shelf solution rather than a machined one-off.
Technical Specifications
| Specification | Value |
|---|---|
| Style | Slip |
| Butt Dia | 3.344 |
| Material | Steel |
| Brand | UDS |
| Part Number | 3-40-1871U |
Component Function in the Drivetrain
The stub & midship shaft is not a glamorous part, but it is load-critical. Every pound-foot of engine torque passes through it on its way to the wheels. A worn, cracked, or dimensionally incorrect stub & midship shaft introduces vibration, unbalances the shaft, and accelerates wear on adjacent components including the u-joint cross, differential seal, and output shaft bearing. The 3-40-1871U replaces like-for-like with current production tolerances.
Installation Notes
- Verify series matches your application before installation
- Inspect mating components (transmission tail housing, output shaft) for wear before fitting
- Lightly lubricate splines or pilot with assembly grease -- do not run dry
- Confirm series u-joint cross is seated fully before tightening retaining hardware
- Check for vibration on first road test and address any anomaly before extended driving
In stock at Universal Driveshafts. Ships in manufacturer packaging with no modifications required for standard applications.
Additional information
| Tube dia | 3.500 |
|---|---|
| Tube wall | 0.083″ |
| Butt dia | 3.344 |
| Splines length | 3.000 |
| End to weld | 8.750 |
| Splines count dia | 16 x 1.562 |
| Style | Slip |
