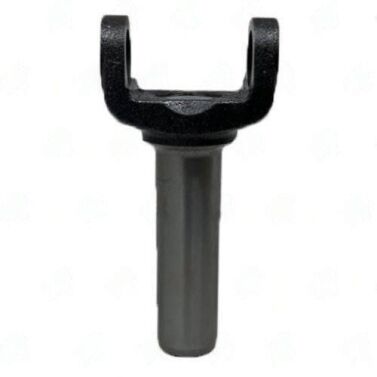

3R03-702 – Transmission Yokes – 3R Series – 26/27 X 1.176 Splines – 1.500″ Hub Dia
$63.26
10
People watching this product now!
Description
3R03-702 Transmission Yoke — 3R series, 26/27 X 1.176 spline | 1.500″ hub | 6.750″ CJ-to-end. GM#26042557. Genuine direct replacement.
Full Description
The 3R03-702 transmission yoke is the connection between the gearbox tailshaft and the front of the driveshaft. It splines onto the transmission output shaft and carries the front u-joint of the driveshaft. For 3R series applications, the spline count and hub diameter are the two specs that determine whether this part fits your tailshaft correctly.
3R03-702 Transmission Yoke — 3R Series Specs & Tailshaft Fit
The 3R series covers metric 3-bolt flange — European and import platforms. The 3R03-702 transmission yoke specs: 26/27 X 1.176 spline | 1.500" hub | 6.750" CJ-to-end. Compatible with: GM#26042557. Hub diameter determines engagement depth on the tailshaft — if the hub is too short, the splines don't fully engage. CJ-to-end affects driveshaft working length.
After a transmission rebuild or swap, confirm the tailshaft spline count hasn't changed before installing the 3R03-702 transmission yoke. Not all 3R series transmissions use the same output spline across all years and configurations. Count the splines on the actual shaft.
Key Features
- Series: 3R — metric 3-bolt flange — European and import platforms
- Spline: 26/27 X 1.176 — must match transmission tailshaft
- Hub dia: 1.500" — determines spline engagement depth
- CJ-to-end: 6.750" — affects driveshaft working length
- Compatible with: GM#26042557
- Brand: UDS
Specifications
- SKU: 3R03-702
- Brand: UDS
- Series: 3R
- Spline: 26/27 X 1.176
- Hub Dia: 1.500"
- CJ to End: 6.750"
- Notes: GM#26042557
Additional information
| Center u joint to end |
6.750 |
|---|---|
| Counter bore dia |
0 |
| Hub dia |
1.500 |
| Notes |
GM#26042557 |
| Partn number |
3R03-702 |
| Series |
3R |
| Splines count dia |
26/27 X 1.176 |
