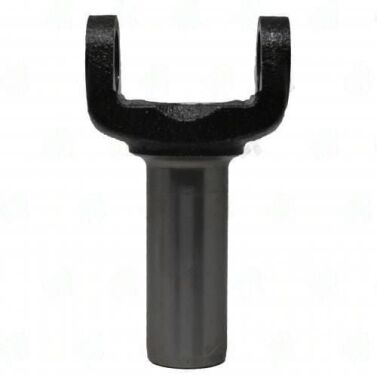

3R03-350 Transmission Yoke 3R Fits various 27 spline (GM) Output Shafts: Turbo 350, TH-350, T56, T375, T-5, T-10, Saginaw, Powerglide, M21, M20, 700R4, 4L65E, 4L60E, 200-R4 and some transfer case applications.
$36.71
+50 in stock
Description
Full-spline 3R-series transmission yoke for GM TH350, T56, 4L60E, and related 26/27-spline output shafts. 5.460″ center-to-end.
Full Description
Q: What is the 3R03-350 and which transmissions does it fit?
A: The 3R03-350 is a full-spline, inside snap-ring 3R-series transmission yoke for GM's 26/27-spline output shaft family. Confirmed fitments: Turbo 350, TH-350, T56, T375, T-5, T-10, Saginaw, Powerglide (some variants), M21, M20, 700R4, 4L65E, 4L60E, 200-R4, and select transfer cases in this spline class. Cross-reference GM part 7812557.
Q: Is the 3R03-350 the same as the 3R03-700?
A: Same spline spec, same hub diameter, same retention style -- but different center-to-end lengths. The 3R03-350 is 5.460" for TH350-length applications, while the 3R03-700 is 6.750" for TH700/4L60E-length applications. Using the wrong length shifts tube engagement depth and can cause vibration or tube-to-case contact.
Q: Is "full spline" important on the 3R03-350?
A: Yes -- full spline means the engagement length runs the complete hub bore depth, maximizing torque-carrying area. Partial-spline designs have a lead-in taper that reduces engagement length. The full-spline design is preferable for high-torque applications because it distributes stress more evenly across all teeth simultaneously.
Alternative parts:
Additional information
| Center u joint to end | 5.460 |
|---|---|
| Counter bore dia | |
| Hub dia | 1.500 |
| Notes | Full Spline GM#7812557 |
| Partn number | 3R03-350 |
| Series | 3R |
| Splines count dia | 26/27 X 1.176 |
