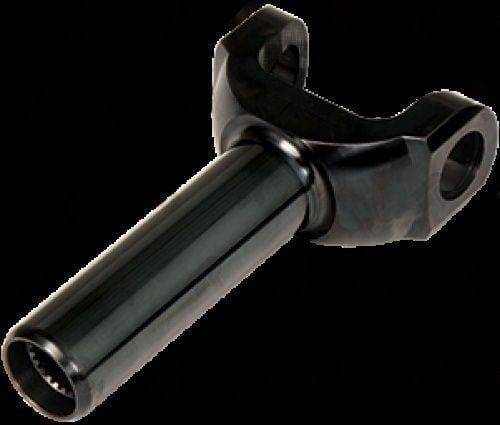

3R-3-9131HP – Transmission Yokes – 31/32 X 1.391 Splines – 1.886″ Hub Dia – Center U Joint To End 7.500

The 3R-3-9131HP shares the same dimensional specification as the T3R-3-9161HP but carries a different part number designation indicating a variant in the forging or supplier sourcing -- both are forged chromoly, 31/32 x 1.391" spline, 1.886" hub, 7.500" center-to-end in the 3R inside-snap-ring family. Verify the snap-ring groove style on your TH400 output shaft matches the inside-retention design before ordering from either of these part numbers.

• 3R series -- inside snap-ring retention; different from outside snap-ring yokes at the same spline spec
• 31/32 x 1.391" PD -- 0.006" smaller PD than the T2-3 series 1.397" PD; these are not interchangeable
• 1.886" hub OD -- requires matching 1.886" tailshaft seal bore
• 7.500" C-to-end -- long slip variant; measure tunnel clearance to confirm driveshaft tube can retract this far
• Chromoly construction -- specified for drag racing and sustained high-torque street performance builds

An easy verification method for identifying whether your TH400 uses inside or outside snap-ring retention: with the yoke removed, inspect the output shaft end. An inside (external-groove) design will show a machined groove in the shaft OD approximately 0.375" from the end; an outside (bore-groove) design will have a smooth shaft end with the groove inside the yoke bore. This transmission yoke requires the former.
