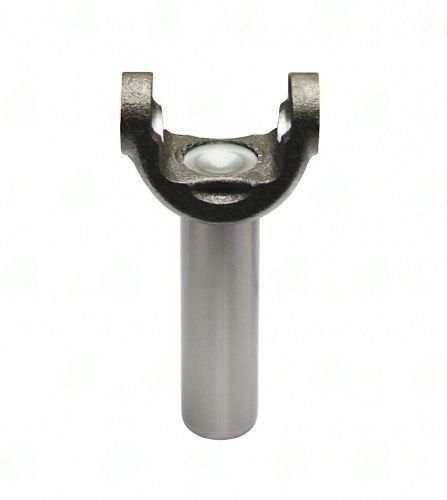

3503-313 – Transmission Yokes – 1350 Series – 30/31 X 1.391 Splines – 1.685″ Hub Dia
$96.77
Description
The 3503-313 Transmission Yoke is a crucial component for any Ford Mustang enthusiast. This yoke is part of the 1350 series, which is known for its robust design and compatibility with high-performance applications. With a spline count of 30/31 and a spline diameter of 1.391 inches, this yoke ensures a secure connection to the driveshaft, allowing for efficient power transfer from the transmission.
One of the standout features of the 3503-313 is its hub diameter of 1.685 inches, which is essential for fitting the corresponding U-joint properly. Using a yoke that doesn’t match these specifications could lead to improper fitment, causing vibrations or even failure during operation. The counter bore diameter of 1.435 inches also plays a critical role in ensuring that the yoke aligns perfectly with the transmission or differential.
- Series: 1350
- Spline Count: 30/31 X 1.391
- Hub Diameter: 1.685 inches
- Center U Joint to End Measurement: 7.500 inches
- Application: Ford Mustang
When installing the 3503-313, always check the spline engagement depth and verify phasing with the opposite yoke to prevent any driveline issues. Remember, a proper fit is essential for optimal performance and longevity of your driveline components. The 3503-313 is specifically engineered for Ford Mustang applications, making it a reliable choice for your next project.
| Center u joint to end |
7.500 |
|---|---|
| Counter bore dia |
1.435 |
| Hub dia |
1.685 |
| Notes |
Ford Mustang |
| Partn number |
3503-313 |
| Remaining stock |
>10 |
| Series |
1350 |
| Splines count dia |
30/31 X 1.391 |
