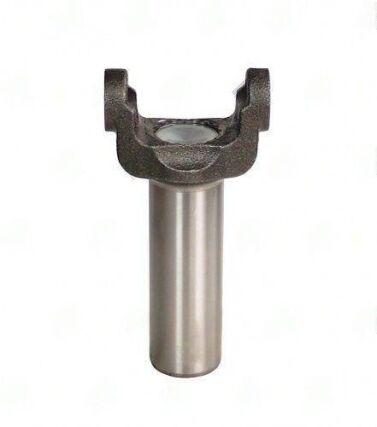

3303-321 – Transmission Yokes – 1330 Series – 31/32 X 1.378 Splines – 1.886″ Hub Dia
$91.65
1 in stock
Description
3303-321 1330 series transmission yoke, 31/32-spline x 1.378″ diameter, 7.250″ centerline to U-joint, 1.886″ hub diameter.
Full Description
3303-321 -- 1330 Series Transmission Yoke, 31/32-Spline x 1.378", 7.250"
The 3303-321 is the 1330 series equivalent of the TH400/BW208/241 family yokes at a 7.250" C/U-joint to end dimension. On vehicles where the original driveshaft was equipped with a 1330 series U-joint -- common on lighter-duty GM trucks and SUVs -- this yoke preserves the original series without requiring an upgrade of the entire driveshaft. Upgrading to 1350 series without changing the tube yoke or U-joint is a common mistake that results in incorrect cap seating.
No counterbore -- hub OD provides sole centering. The 1.886" hub is the GM output specification for TH400 and related transfer case applications. Standard steel construction is appropriate for stock and lightly modified street vehicles. For performance builds with this spline count, see T2-3-10831HP (6.750" chromoly, 31/32-spline) or T2-3-10201HP (7.000", 30/31-spline chromoly).
Additional information
| Center u joint to end | 7.250 |
|---|---|
| Counter bore dia | |
| Hub dia | 1.886 |
| Partn number | 3303-321 |
| Series | 1330 |
| Splines count dia | 31/32 X 1.378 |
More Parts from the same Category
Filters Sort results
Reset Apply
Image | Part # | Part Details | Price | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Transmission Yokes (167) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Center u joint to end 4.875 Counter bore dia 910 Hub dia 1.178 Notes NISSAN- SUBARU Partn number 1203-18 Series 1251 Splines count dia 18 X 0.800 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Center u joint to end 5.875 Counter bore dia 1.038 Hub dia 1.375 Notes NISSAN- SUBARU Partn number 1203-24 Series 1251 Splines count dia 22/24 X 0.995 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Center u joint to end 5.250 Counter bore dia 1.100 Hub dia 1.375 Notes NISSAN- SUBARU Partn number 1203-241 Series 1251 Splines count dia 22/24 X 0.995 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Center u joint to end 4.750 Counter bore dia 1.000 Hub dia 1.375 Notes Nissan Partn number 1203-24S Series 1251 Splines count dia 22/24 X 0.995 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Center u joint to end 6.000 Counter bore dia 1.250 Hub dia 1.495 Notes Nissan Partn number 1203-26 Series 1251 Splines count dia 24/26 X 1.115 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Center u joint to end 6.000 Counter bore dia 1.125 Hub dia 1.375 Notes Nissan Partn number 1203-26S Series 1251 Splines count dia 24/26 X 1.115 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Center u joint to end 6.125 Counter bore dia 0 Hub dia 1.575 Notes Toyota Car and Truck / Typically automatic trans Partn number 1303-23 Series 1351-20 Splines count dia 23 X 1.200 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Center u joint to end 6.125 Counter bore dia 0 Hub dia 1.495 Notes Toyota Car and Truck Partn number 1303-41 Series 1351-20 Splines count dia 21 X 1.100 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Center u joint to end 5.500 Counter bore dia 1.079 Hub dia 1.298 Notes Capri Partn number 1403-10 Series 1100 Splines count dia 10 X 1.000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Center u joint to end 5.500 Counter bore dia 0 Hub dia 1.375 Notes Capri Partn number 1403-25 Series 1100 Splines count dia 24/25 X 1.109 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
