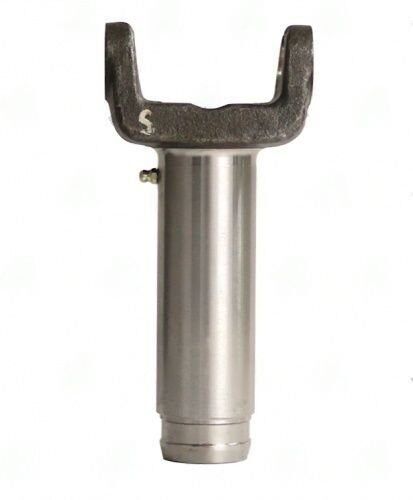

3303-162 – Slip Yoke – 1.375″ Splines Dia – 16 Splines – Center U Joint To End 7.500
$43.28
11 in stock
15
People watching this product now!
Description
3303-162 UDS 1330 series slip yoke. Splines: 16, CJ-to-end: 7.500″. Verify stop shaft spline count and diameter before ordering.
Full Description
3303-162 UDS 1330 Slip Yoke
The 3303-162 is a 1330 series slip yoke manufactured by UDS. The slip yoke slides over the stop shaft — the splined stub welded onto the front section of the driveshaft tube — and telescopes in and out as the suspension cycles. This allows the driveshaft to change working length without binding.
The spline specification is 16; verify this matches the stop shaft before ordering. The centerline-to-end dimension is 7.500 inches, measured from the U-joint centerline to the open end of the spline bore. This controls minimum engagement depth under full suspension droop — ensure sufficient spline overlap remains at maximum driveshaft extension. Commonly used on long travel 4x4's. The 1330 series ranks above 1310 in torque capacity, with a 1.062-inch cap diameter, suited for 3/4-ton trucks and heavier light-duty applications.
Specifications
- Part Number: 3303-162
- Brand: UDS
- Series: 1330
- Center u joint to end: 7.500
- Notes: Commonly used on long travel 4x4's
- Splines count: 16
- Splines dia: 1.375
Fitment & Installation Notes
When selecting the 3303-162, verify the stop shaft spline count and diameter match the 16 specification. Inspect the stop shaft for wear or damage; a worn shaft will produce lash even with a new yoke.
View the full range of Slip Yoke in 1330 and adjacent series configurations.
Additional information
| Center u joint to end | 7.500 |
|---|---|
| Notes | Commonly used on long travel 4×4’s |
| Partn number | 3303-162 |
| Series | 1330 |
| Splines count | 16 |
| Splines dia | 1.375 |
