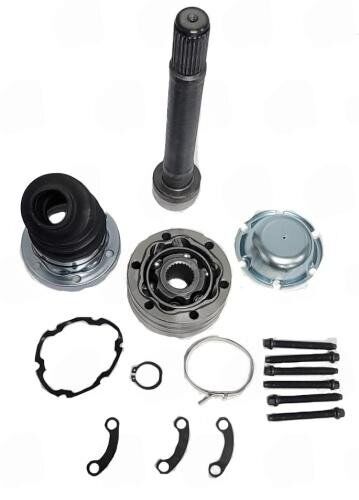

3190-1006 – CV Joint Kit – 25 x 0.985″ Splines – Inner Race Width 39mm – Outer Race Width 42mm
$124.02
13 in stock
16 People watching this product now!
Description
3190-1006 Rzeppa CV joint kit for Jeep, Chrysler, Dodge. 25 x 0.985″ spline, 100mm OD, 39mm inner race width, accordion boot. Gasket and boot cap included.
Full Description
3190-1006 Rzeppa CV Joint Kit — 25 x 0.985" Spline, Jeep / Chrysler / Dodge
The 3190-1006 is a Rzeppa-style CV joint kit for Jeep, Chrysler, and Dodge applications. The inner race features a 25-spline bore at 0.985-inch diameter with an inner race width of 39mm. The outer race diameter is 100mm with a width of 42mm. The bolt circle diameter is not listed but the bolt hole count is 6 at 8.4mm diameter. Gasket and boot cap are included. The assembly uses an accordion-style rubber boot.
Specifications
- Part Number: 3190-1006
- Style: Rzeppa
- Application: Jeep, Chrysler, Dodge
- Spline Count: 25
- Spline Diameter: 0.985"
- Inner Race Width: 39mm
- Outer Diameter: 100mm
- Outer Race Width: 42mm
- Bolt Hole Count: 6
- Bolt Hole Diameter: 8.4mm
- Gasket: Included
- Boot Cap: Included
- Notes: Accordion rubber boot
When fitting the 3190-1006, confirm the driveshaft stub shaft has 25 splines at 0.985-inch diameter. The companion flange must accept 6 bolt holes at 8.4mm diameter. The accordion rubber boot is integrated in the kit — verify the boot is not damaged during installation, as the accordion design is specific to this joint geometry and cannot be replaced with a standard CV boot.
The 3190-1006 is engineered for Jeep, Chrysler, and Dodge applications. The 39mm inner race width and 100mm outer diameter define the joint envelope — confirm these dimensions against the driveshaft end geometry before ordering. Gasket and boot cap are included in the kit, completing the CV joint installation hardware.
Additional information
| Style | Rzeppa |
|---|---|
| Bolt hole count | 6 |
| Bolt hole dia | 8.4mm |
| Boot cap part | INCLUDED |
| Gasket | INCLUDED |
| Inner race width | 39mm |
| Outer dia | 100 |
| Outer race width | 42mm |
| Splines count | 25 |
| Splines dia | 0.985 |
| Application | Jeep, Chrysler, Dodge |
| Notes | accordion rubber boot |
| Partn number | 3190-1006 |
