3152-1001 – CV Joint Kit – 28″ Splines dia – 25 Splines – Bolt Hole Dia 8.5
$164.29
5 in stock
17
People watching this product now!
Description

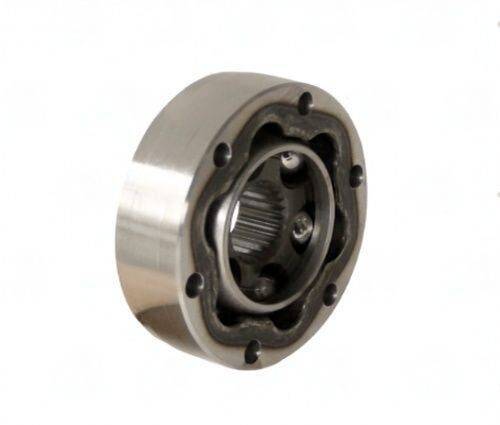

3152-1001 Cv Joint Kit — Rzeppa, 99.8 OD | 28 x 25 spline | 23 inner race | 30 outer race. Proven complete replacement kit, all components matched.
Full Description
The 3152-1001 CV joint kit is a complete Rzeppa constant velocity joint assembly — inner race, outer race, ball bearings, cage, and all required hardware. It replaces the full CV joint as a unit, not just one component. The 3152-1001 CV joint kit is dimensioned for one specific application: outer diameter, spline count, and race widths are all matched and verified.
3152-1001 Cv Joint Kit — Rzeppa Specs & Fitment
The 3152-1001 CV joint kit specs: 99.8 OD | 28 x 25 spline | 23 inner race | 30 outer race. Dodge. Outer diameter determines fit in the housing bore. Spline count determines shaft engagement. Inner and outer race widths determine how the assembly stacks in the housing — all four specs must match. Substituting races from different part numbers causes uneven load distribution and early failure.
Pack the 3152-1001 CV joint kit thoroughly with CV grease during installation — fill the inner race cavity before seating the cage. CV joint failures from grease starvation happen faster than mechanical wear. Don't use wheel bearing grease — use CV-specific grease rated for the operating angle of your application.
Key Features
- Style: Rzeppa — constant velocity design, smooth power transfer at operating angle
- Outer dia: 99.8 — must fit housing bore exactly
- Spline: 28 x 25 — shaft engagement spec
- Inner race width: 23
- Outer race width: 30
- Complete kit — all components matched and measured for correct assembly
- Note: Dodge
Specifications
- SKU: 3152-1001
- Brand: UDS
- Style: Rzeppa
- Outer Dia: 99.8
- Spline Dia: 28
- Spline Count: 25
- Inner Race Width: 23
- Outer Race Width: 30
- Notes: Dodge
Additional information
| Bolt hole count | 6 |
|---|---|
| Bolt hole dia | 8.5 |
| Splines count | 25 |
| Splines dia | 28 |
| Outer dia | 99.8 |
| Outer race width | 30 |
| Inner race width | 23 |
| Gasket | INCLUDED |
| Boot cap part | INCLUDED |
| Notes | Dodge |
| Partn number | 3152-1001 |
