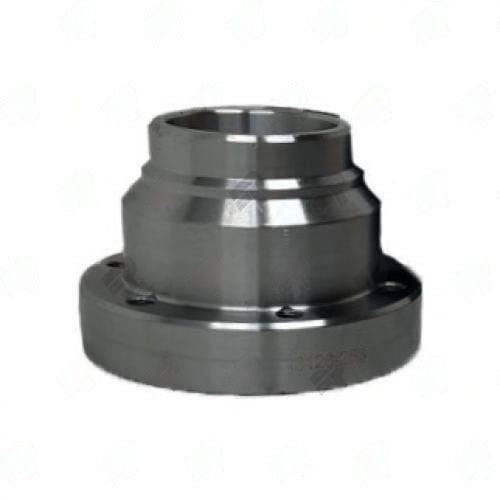

3126-253 – Weld Yokes – CVJ Series – Butt Dia 2.344″ – Tube Dia Wall 2.500X0.083
$69.42
1 in stock
Description
CVJ-series weld yoke for 2.500×0.083 tube with 2.344″ butt diameter and 1.625″ CL-to-weld. Used with 3152-1002 and 3153-253.
Full Description
| Attribute | Specification |
|---|---|
| Part Number | 3126-253 |
| Series | CVJ (constant-velocity joint) |
| Tube Diameter x Wall | 2.500" x 0.083" |
| Butt Diameter | 2.344" |
| Centerline to Weld | 1.625" |
| Material | Steel |
| Used With | 3152-1002 (CV socket), 3153-253 (front yoke) |
- 0.375" longer centerline-to-weld than the 3626-252 (1.625" vs. 1.250") -- this changes the effective shaft length; account for the difference when calculating driveshaft tube cut length
- The 2.344" butt diameter is the standard for CVJ-series components in this tube class; interchangeable pilot dimension across the CVJ family
- Must be ordered and installed with companion parts 3152-1002 and 3153-253 for a complete functional assembly
- CVJ-series provides single-plane constant-velocity motion at working angles up to approximately 18 degrees
- See our CV joint kit category for the complete centering ball and socket hardware
The 1.625" centerline-to-weld on the 3126-253 places the weld joint further from the U-joint centerline than the 3626-252 variant. This extra distance benefits heat management during welding -- the U-joint trunnion hardness can be degraded if weld heat propagates within 1.000" of the trunnion journal. Always allow the weld zone to cool below 150 degrees F before pressing the U-joint into the yoke ears on a CVJ weld yoke assembly.
Additional information
| Butt dia | 2.344 |
|---|---|
| Center u j to weld | 1.625 |
| Material | STEEL |
| Notes | USED WITH: 3152-1002 AND 3153-253 |
| Partn number | 3126-253 |
| Series | CVJ |
| Tube dia wall | 2.500X0.083 |
| Brand | UDS |
