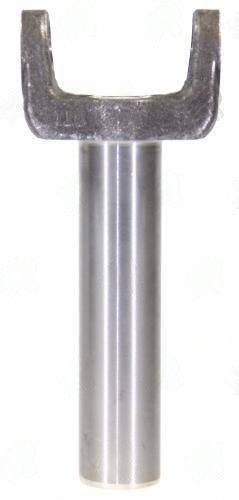

3103-28 – Transmission Yokes – 1310 Series – 27/28 X 1.220 Splines – Center U Joint To End 7.750
$94.07
1 in stock
Description
Long 1310-series Ford C4 transmission yoke with 27/28×1.220 splines, 1.319″ counterbore, 1.600″ hub, and 7.750″ C-to-end.
Full Description
| Attribute | Specification |
|---|---|
| Part Number | 3103-28 |
| Series | 1310 (1.062" cap diameter) |
| Splines | 27/28 x 1.220" |
| Hub Diameter | 1.600" |
| Counterbore Diameter | 1.319" |
| Center U-Joint to End | 7.750" |
| Application | Ford C4 (extended tailshaft / race applications) |
- At 7.750" C-to-end, this is the longest standard 1310 series C4 yoke -- provides maximum slip travel for drag-race or heavily modified chassis
- 1.319" counterbore locates over bearing retainer; centers yoke on output shaft for zero-runout installation
- 1.600" hub diameter -- verify tailshaft seal is sized to match, not the 1.500" standard C4 seal
- 27/28-spline x 1.220" PD -- Ford C4 standard; not compatible with C6 output shaft geometry
- Complete this drivetrain with a 1310-series weld yoke at the rear axle for a matched series assembly
The counterbore on this yoke is an important detail -- the 1.319" bore pilots the yoke onto the C4 output shaft bearing retainer OD, eliminating radial float at the transmission end of the driveshaft. On a car with a short wheelbase or a lightweight tube, even 0.001" of radial play at the yoke/tailshaft interface will produce a detectable vibration above 3,000 RPM.
Additional information
| Center u joint to end | 7.750 |
|---|---|
| Counter bore dia | 1.310 |
| Hub dia | 1.600 |
| Notes | C4 |
| Partn number | 3103-28 |
| Series | 1310 |
| Splines count dia | 27/28 X 1.220 |
