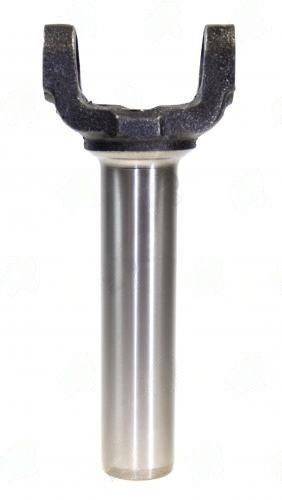

3103-278 – Transmission Yokes – 1310 Series – 1.500″ Hub Dia – Center U Joint To End 8.000
$72.12
1 in stock
Description
Extra-long 1310-series race transmission yoke for TH350 with 26/27×1.176 splines and 8.000″ center-to-end for maximum slip travel.
Full Description
- Part Number
- 3103-278
- Series
- 1310 (1.062" U-joint cap diameter)
- Splines
- 26/27 x 1.176"
- Hub Diameter
- 1.500"
- Center U-Joint to End
- 8.000"
- Application
- Race car / T350 transmission, extra-long slip
The 3103-278 was developed specifically for racing applications where the chassis requires maximum driveshaft plunge range -- typically circle-track cars that use a TH350 or equivalent and experience large suspension travel or chassis flex under cornering loads. At 8.000" center-to-end, this transmission yoke provides 2.531" more slip travel than the standard 3103-275 (5.469" C-to-end). The additional length keeps the driveshaft tube engaged in the slip even when the chassis torques heavily on acceleration out of a corner. Confirm tube OD and wall thickness -- thinner-wall tubes can collapse if the yoke engagement depth reduces the effective tube section at extreme extension. Match with the appropriate 1310-series weld yoke at the rear for consistent series strength through the assembly.
Alternative parts:
Additional information
| Center u joint to end | 8.000 |
|---|---|
| Counter bore dia | |
| Hub dia | 1.500 |
| Notes | Used in race car applications with T350 trans, extra long travel slip. |
| Partn number | 3103-278 |
| Series | 1310 |
| Splines count dia | 26 / 27 X 1.176 |
