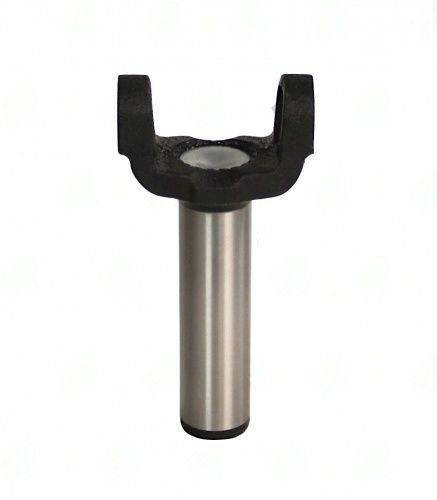

3103-251 Transmission Yoke 1310 Series Fits various 25 spline Ford, Lincoln, Mercury transmission cases including C3, A4LD, 5R55E and some Transfer cases. 2-3-8431X
$67.38
32 in stock
Description
1310-series transmission yoke for Ford C3, A4LD, and 5R55E transmissions with 25-spline 1.113″ PD output shaft and 6.500″ center-to-end.
Full Description
Q: What Ford transmissions use the 3103-251?
A: The 25-spline, 1.113" PD output shaft was used in the Ford C3 (light-duty small car automatic), the A4LD, the 5R55E, and select transfer cases in Ford compact and midsize SUVs. The full list spans several decades of Ford production. Cross-reference Spicer 2-3-8431X for OEM confirmation.
Q: Is the 25-spline Ford spec the same as any Jeep or GM 25-spline?
A: No. The pitch diameter (1.113") and tooth form are specific to Ford's light-duty automatic application. GM's 25-spline output shafts use a different PD and tooth angle. Using a mismatched yoke will result in a loose, chattering fit that fails within hundreds of miles.
Q: Why does this transmission yoke run 6.500" C-to-end when similar-size transmissions use 5.500"?
A: Ford's C3/A4LD tailshaft is dimensionally longer than the GM TH350 case, requiring the additional 1.031" of slip engagement. Installing a shorter yoke will leave the driveshaft tube under-engaged at full droop, risking separation on rough roads.
Additional information
| Center u joint to end | 6.500 |
|---|---|
| Counter bore dia | |
| Hub dia | 1.375 |
| Notes | Ford C3 |
| Partn number | 3103-251 |
| Series | 1310 |
| Splines count dia | 25 X1.113 |
