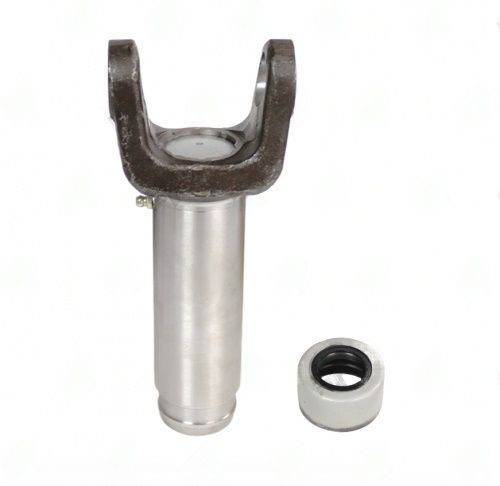

3103-162 – Slip Yoke – 1.375″ Splines Dia – 16 Splines – Center U Joint To End 7.875
$44.66
5 in stock
Description
3103-162 slip yoke, 1310 series, 16 splines at 1.375″ bore diameter, 7.875″ center-to-end. Direct replacement for transmission output shaft interface.
Full Description
Driveline clunk, vibration at a specific speed, and unexplained transmission fluid leaks share a common culprit: a worn slip yoke. The 3103-162 delivers a ready-to-install 1310 series replacement with 16 splines at 1.375" diameter, purpose-built to solve these symptoms and restore smooth, quiet driveshaft operation.
Diagnosing Slip Yoke Failure
A healthy slip yoke moves smoothly on the output shaft with minimal radial play and no perceptible spline backlash. When the splines wear, the yoke develops side-to-side movement that creates the characteristic low-frequency thud heard during tip-in acceleration. Simultaneously, the scored sliding surface begins to damage the transmission seal, eventually producing a fluid trail on the driveshaft. Replacing the 3103-162 at the first sign of spline wear prevents cascading damage to the seal and output shaft.
Part Specifications
| Specification | Detail |
|---|---|
| Part No. | 3103-162 |
| Series | 1310 |
| Spline Count | 16 |
| Spline Bore | 1.375" |
| U-Joint CL to End | 7.875" |
| Notes | Commonly used long travel on 4X4 |
Confirming the Right Part
The 16-spline, 1.375" bore is the critical match criterion for your transmission. Count the splines on your output shaft, then measure pitch diameter with a micrometer or vernier caliper across the pitch circle. If the numbers match 16 and 1.375", the 3103-162 is your correct replacement.
Replacement Procedure Summary
- Mark the rear driveshaft orientation at the differential companion flange
- Slide the driveshaft rearward to disengage the slip yoke from the transmission
- Replace the transmission extension housing seal while you have access
- Slide new 3103-162 onto output shaft -- feel for full spline engagement
- Reconnect rear of driveshaft in marked orientation
- Top off transmission fluid; road test and confirm no leaks
Stocked and Ready
Universal Driveshafts maintains on-shelf inventory of 1310 series slip yokes including the 3103-162. Fast shipping available. Contact us for fleet pricing or bulk orders.
Not sure which slip yoke you need? Our transmission slip yoke guide covers spline counts, styles, and how to measure.
Additional information
| Center u joint to end | 7.875 |
|---|---|
| Notes | Commonly used long travel on 4X4 |
| Partn number | 3103-162 |
| Series | 1310 |
| Splines count | 16 |
| Splines dia | 1.375 |
