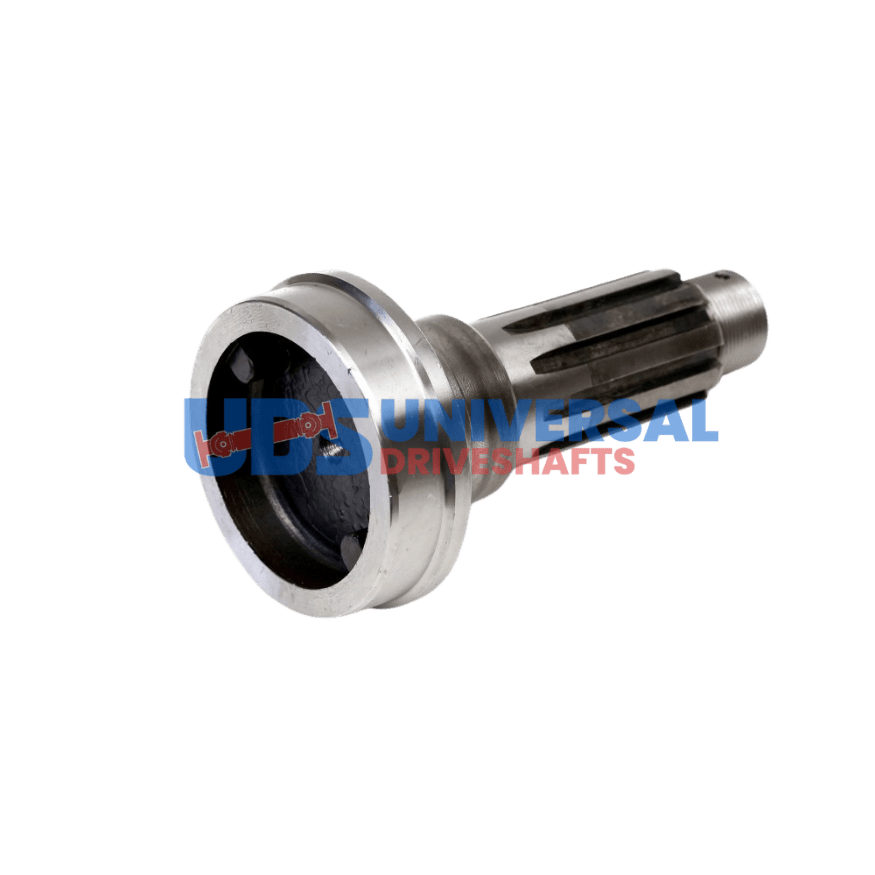

3-54-611 Splined Midship Tube Shaft 1.375×10 spline, 3.000 X 0.083 Tube
$32.24
+50 in stock
Description
3-54-611 splined midship tube shaft, 1.375 inch diameter x 10 splines, for 3.000 x 0.083 wall tube.
Full Description
The 3-54-611 is a stub shaft midship section with 1.375-inch diameter and 10 splines -- a lower spline count than the 16-spline configurations seen in other midship shafts. The 10-spline design provides coarser engagement, appropriate for moderate-torque applications where the simpler spline geometry reduces manufacturing cost without sacrificing durability.
- SKU
- 3-54-611
- Spline
- 1.375" dia x 10 splines
- Tube fit
- 3.000" x 0.083" wall
- Application
- Two-piece driveshaft midship section
When assembling the two-piece driveshaft, the midship shaft must be phased correctly with respect to the front and rear shaft sections. On two-piece shafts with double Cardan joints, improper phasing amplifies vibration rather than canceling it -- mark the original orientation before disassembly if servicing an existing assembly.
Additional information
| Tube dia | 3.000 |
|---|---|
| Tube wall | 0.083″ |
| Butt dia | 2.844 |
| Splines count | 10 |
| Splines dia | 1.375 |
| Splines length | 1.688 |
| End to weld | 4.000 |
| Bearing dia | 1.378 |
| Brand | UDS |
| Splines count dia | 10 x 1.375 |
| Style | FIXED |
