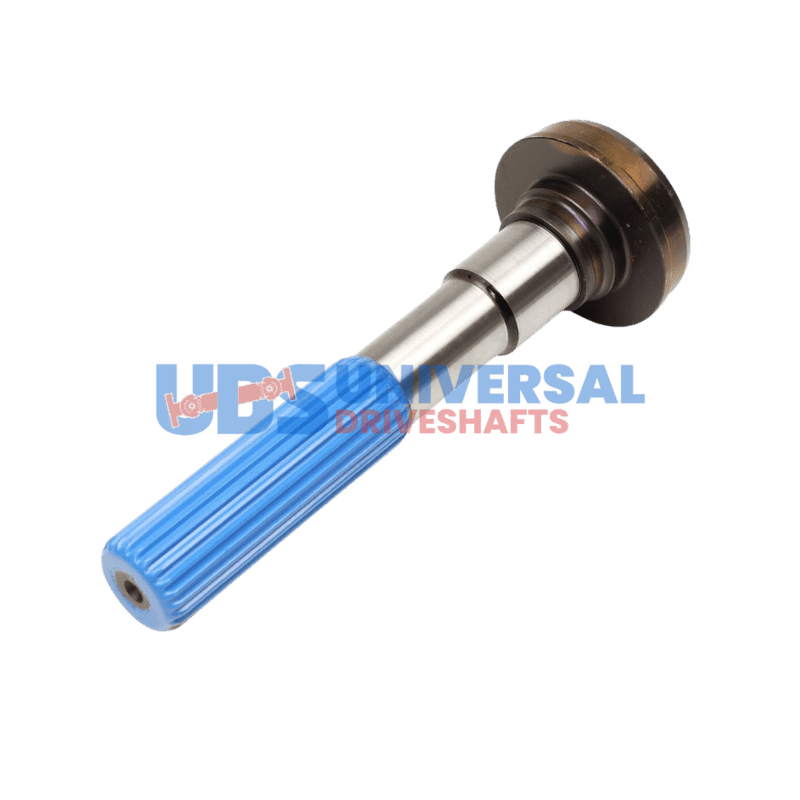

Splined Midship Tube Shaft Splines: 1.562×24 , Fits: 3.500 X .083 Tube 3-53-2571
$54.58
7 in stock
10 People watching this product now!
Description
3-53-2571U Midshaft Stub — 23/24 X 1.562 spline | 3.000″ spline length | 3.344″ butt dia | 9.890″ end-to-weld | fits 3.500 tube. Professional two-piece driveshaft center section. Verify spline and tube specs.
Full Description
The 3-53-2571U midshaft stub is the center section of a two-piece driveshaft — it carries the center support bearing and bridges the front and rear shaft assemblies. Spline count, spline diameter, and butt diameter are all spec-specific. The 3-53-2571U midshaft stub won't fit a different tube OD or a different output shaft spline, and substituting a close-but-not-exact part will produce vibration that traces directly back to this component.
3-53-2571U Midshaft Stub — Spline & Tube Dimensions
The 3-53-2571U midshaft stub specs: 23/24 X 1.562 spline | 3.000" spline length | 3.344" butt dia | 9.890" end-to-weld | fits 3.500 tube. Use boot 212007X, order separate. Will not fit 4180-10, 4180-45, 4180-46. The butt diameter determines how the stub seats in the driveshaft tube — too loose and the weld joint runs off-center. Spline length determines engagement depth on the output shaft; short engagement under high torque loads damages the shaft splines before the stub shows any sign of wear.
When replacing a midshaft stub, measure both the tube ID and the output shaft spline count before ordering. Check runout on the new 3-53-2571U midshaft stub before welding — a stub with more than 0.005" runout will never balance correctly regardless of how many weights you add.
Key Features
- Spline: 23/24 X 1.562 — verify against output shaft
- Spline length: 3.000" — full engagement required under load
- Butt dia: 3.344" — must seat concentrically in driveshaft tube
- End-to-weld: 9.890" — factors into total shaft length
- Tube fit: 3.500 — designed for this tube specification
- Bearing dia: 1.574" — matches center support bearing inner race
- Brand: UDS
- Note: Use boot 212007X, order separate. Will not fit 4180-10, 4180-45, 4180-46
Specifications
- SKU: 3-53-2571U
- Brand: UDS
- Spline: 23/24 X 1.562
- Spline Length: 3.000"
- Butt Dia: 3.344"
- End to Weld: 9.890"
- Tube Fit: 3.500
- Bearing Dia: 1.574"
- Notes: Use boot 212007X, order separate. Will not fit 4180-10, 4180-45, 4180-46
Additional information
| Tube dia | 3.500 |
|---|---|
| Tube wall | 0.083" |
| Butt dia | 3.344 |
| Splines length | 3.000 |
| End to weld | 9.890 |
| Bearing dia | 1.574 |
| Brand | UDS |
| Notes | Use boot 212007X, order separate. Will not fit 4180-10, 4180-45, 4180-46 |
| Splines count dia | 23/24 X 1.562 |
| Style | Slip |
