Splined Midship Tube Shaft 3-53-1531 – 1.500×16 spline, 3.000 X .083 tube 1.575″ Bearing
$51.35
+50 in stock
12
People watching this product now!
Description
3-53-1531U UDS LD slip midship shaft. 16 x 1.500″ spline, 6.580″ spline length, fits 3.000″ OD x 0.083″ wall tube, 1.574″ bearing dia, 9.200″ end-to-weld.
Full Description

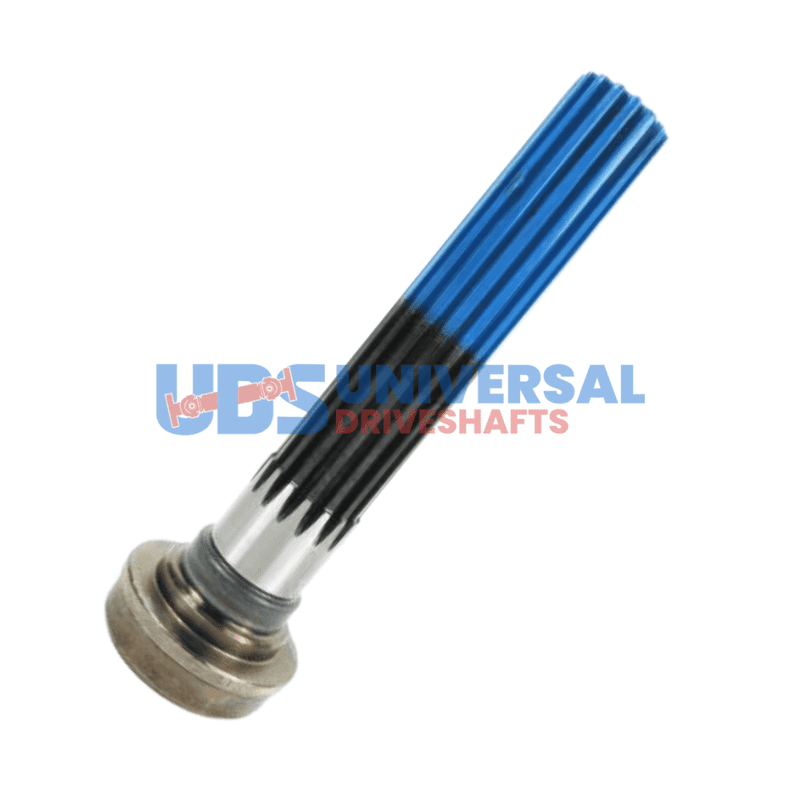

3-53-1531U UDS Splined Midship Tube Shaft — 1.500" x 16 Spline, 3.000" x 0.083" Tube
The 3-53-1531U is a slip-style splined midship tube shaft manufactured by UDS, Class LD. It features a 16-spline bore at 1.500 inches in diameter with a spline length of 6.580 inches. The shaft is designed for a 3.000-inch OD tube with a 0.083-inch wall. The butt diameter is 2.844 inches, the end-to-weld dimension is 9.200 inches, and the bearing diameter is 1.574 inches.
Specifications
- Part Number: 3-53-1531U
- Brand: UDS
- Class: LD
- Style: Slip
- Spline Count x Diameter: 16 x 1.500"
- Spline Length: 6.580"
- Tube OD: 3.000"
- Tube Wall: 0.083"
- Butt Diameter: 2.844"
- End to Weld: 9.200"
- Bearing Diameter: 1.574"
When fitting the 3-53-1531U, verify the mating slip yoke bore is 16 splines at 1.500-inch diameter. The 6.580-inch spline length is notably longer than other midship stubs in this family — this extended spline engagement depth accommodates greater suspension travel in long-travel driveshaft applications. Confirm the tube is 3.000-inch OD x 0.083-inch wall before welding.
The 1.574-inch bearing diameter requires a matching center support bearing ID. The 9.200-inch end-to-weld dimension is the total stub length from spline tip to weld point. When cross-referencing within the 3-53 family for 3.000 x 0.083 tube, compare spline length against travel requirements — the 3-53-1531U at 6.580 inches is longer than the 3-53-1811U at 1.844 inches.
Additional information
| Tube dia | 3.000 |
|---|---|
| Tube wall | 0.083″ |
| Butt dia | 2.844 |
| Splines length | 6.580 |
| End to weld | 9.200 |
| Bearing dia | 1.574 |
| Class | LD |
| Brand | UDS |
| Partn number | 3-53-1531 |
| Splines count dia | 16 x 1.500 |
| Style | Slip |
