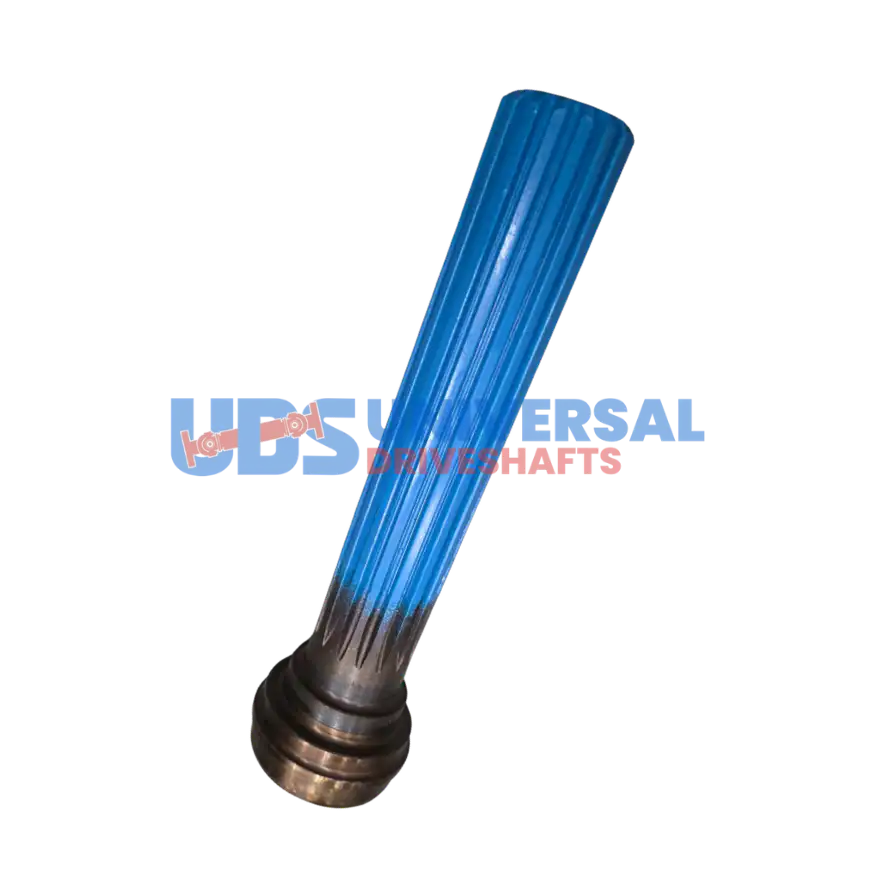

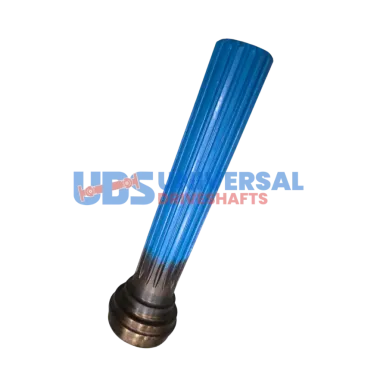

3-40-2512U Super Duty Solid Butt Fits Tube 2.500×0.120 , 2.270″ Tube Size , End To Weld 8.760″
$70.11
49 in stock
Description
3-40-2512U super duty solid butt, fits 2.500 x 0.120 wall tube, 2.270 inch tube size, end to weld 8.760 inches.
Full Description
3-40-2512U Super Duty Solid Butt -- 2.500 x 0.120 Tube
The 0.120-inch wall thickness specification on the 3-40-2512U indicates a heavy-wall tube application -- standard DOM at 2.500 x 0.083 is common for light trucks, but the 0.120 wall is used on high-torque or high-speed applications where tube stiffness and strength are prioritized over weight. The solid butt design (no internal spline) provides a direct rigid connection at the weld point with the 8.760-inch end-to-weld dimension setting the component length.
| Spec | Value |
|---|---|
| SKU | 3-40-2512U |
| Tube fit | 2.500 x 0.120" wall |
| Tube inner size | 2.270" |
| End to weld | 8.760" |
| Design | Solid butt (no spline) |
Confirm the 2.270-inch inner tube dimension matches your tube bore. Heavy-wall tubes from different suppliers can vary by ±0.010 inch on inner diameter -- a difference that creates a loose butt fit and a substandard weld joint.
Additional information
| Bearing dia | N/A |
|---|---|
| Butt dia | 2.270 |
| End to weld | 8.760 |
| Splines count dia | 16 x 1.500 |
| Splines length | 6.530 |
| Notes | SOLID BUTT |
| Tube dia | 2.500 |
| Tube wall | 0.120 |
| Style | Slip |
