3-40-1511 Spline Stub Shaft Splines: 1.500 x 16 , Fits 3.000 X .083 Tube Weld To End: 6.438
$47.80
24 in stock
17
People watching this product now!
Description
3-40-1561-1 slip spline stub shaft, 16×1.500″ splines, 3.000″ spline length, butt 2.844″, fits 3.000×0.083 tube, end-to-weld 6.438″. Use with 3-3-488 slip yoke. Verify spline spec before ordering.
Full Description

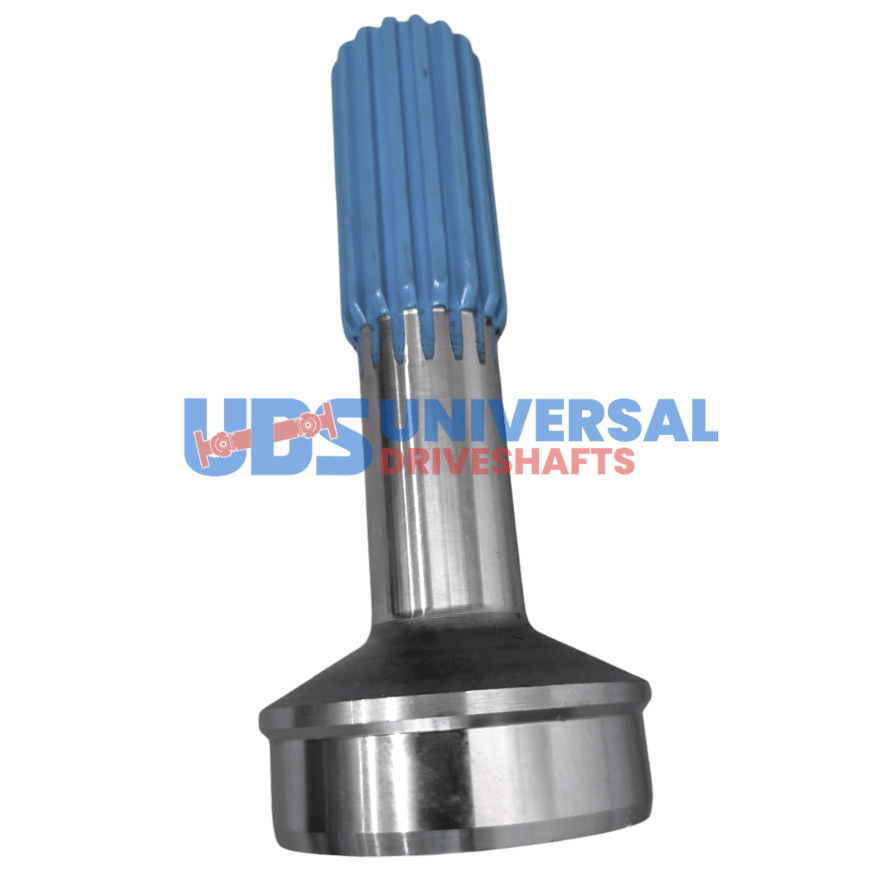

3-40-1561-1 Slip Style Spline Stub Shaft 16x1.500 for 3.000x0.083 Tube
The 3-40-1561-1 is a slip-style spline stub shaft with 16 splines at 1.500" diameter and a 3.000" spline engagement length. The butt diameter is 2.844" and the end-to-weld dimension is 6.438". It fits 3.000" OD x 0.083" wall tube and is intended for use with the 3-3-488 slip yoke.
Specifications
- Part Number: 3-40-1561-1
- Style: Slip
- Splines Count x Diameter: 16 x 1.500"
- Splines Length: 3.000"
- Butt Diameter: 2.844"
- Tube Diameter: 3.000"
- Tube Wall: 0.083"
- End to Weld: 6.438"
- Use With: 3-3-488 Slip Yoke
The 3-40-1561-1 is specifically matched for use with the 3-3-488 slip yoke; confirm the slip yoke on the driveshaft is the 3-3-488 to ensure spline specification compatibility at the male/female interface. The 16-spline, 1.500" spec on this stub shaft must match the bore on the companion slip yoke exactly. The 3.000" spline engagement length provides the working travel range on this assembly.
The 6.438" end-to-weld dimension is a mid-length stub shaft. Include this in driveshaft overall length calculations. The 2.844" butt diameter fits 3.000" OD x 0.083" wall tube; confirm tube wall specification with a micrometer before assembly, as wall variation can affect fit at the butt. The 3-40-1561-1 is a slip-style stub shaft designed for two-piece driveshaft configurations where the slip interface provides axial length accommodation during driveline operation.
Additional information
| Tube dia | 3.000 |
|---|---|
| Tube wall | 0.083″ |
| Butt dia | 2.844 |
| Splines length | 3.000 |
| End to weld | 6.438 |
| Style | Slip |
| Use with | 3-3-488, Slip Yoke |
| Splines count dia | 16 x 1.500 |
