SA1550-395 1550 Series Inverted / Reverse Slip Assembly Centerline To Weld 8 Inch
$187.79
9 in stock
15
People watching this product now!
Description
SA1550-395 UDS 1550 series inverted reverse slip assembly, 16 splines x 1.750″ dia, CL-to-weld 8″, max working position 10.250″. Verify spline spec and max working position before ordering.
Full Description

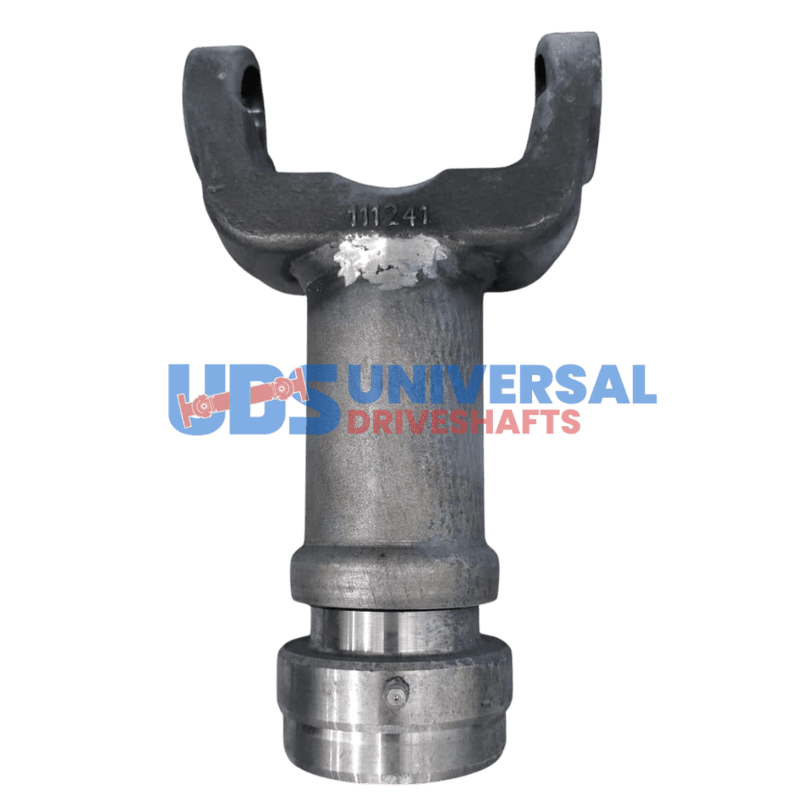

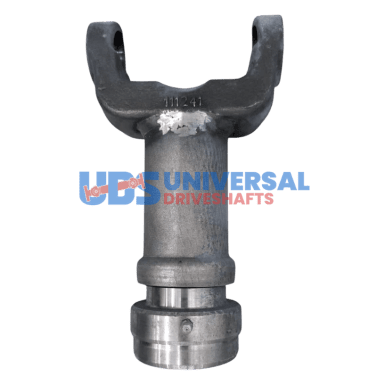

SA1550-395 UDS 1550 Series Inverted Reverse Slip Assembly
The SA1550-395 is a 1550 series inverted (reverse) slip assembly manufactured by UDS. It carries 16 splines at 1.750" diameter in steel construction. The centerline-to-weld is 8 inches and the maximum working position is 10.250 inches.
Specifications
- Part Number: SA1550-395
- Brand: UDS
- Series: 1550
- Style: Inverted / Reverse
- Splines Count: 16
- Splines Diameter: 1.750"
- Material: Steel
- Centerline To Weld: 8.000"
- Max Working Position: 10.250"
The inverted/reverse configuration of the SA1550-395 means the splined male and female members are oriented opposite to a standard slip assembly — this design is used when the application requires the yoke to travel over the stub rather than the conventional stub-into-sleeve arrangement. The 10.250" maximum working position is the critical limit; the assembly must not be extended beyond this dimension in service to maintain adequate spline engagement and structural integrity.
The 1550 series provides high torque capacity, and the SA1550-395 at 16 splines and 1.750" diameter is a specific combination for this capacity range. Confirm the stop shaft or mating component carries 16 splines at 1.750" diameter before ordering. The 8" CL-to-weld dimension must be included in the driveshaft build geometry, and the max working position of 10.250" constrains the maximum compressed length at the inverted slip interface.
Additional information
| Brand | UDS |
|---|---|
| Series | 1550 |
| Splines count | 16 |
| Splines dia | 1.750 |
| Notes | Centerline To Weld: 8Inch | Max Working Positon: 10.250Inch |
| Material | STEEL |
| Partn number | SA1550-395 |
