Slip Yoke 3-3-6041 1410 series, 1.587×22/24 spline 6.720 Centerline to End
$43.06
30 in stock
19
People watching this product now!
Description

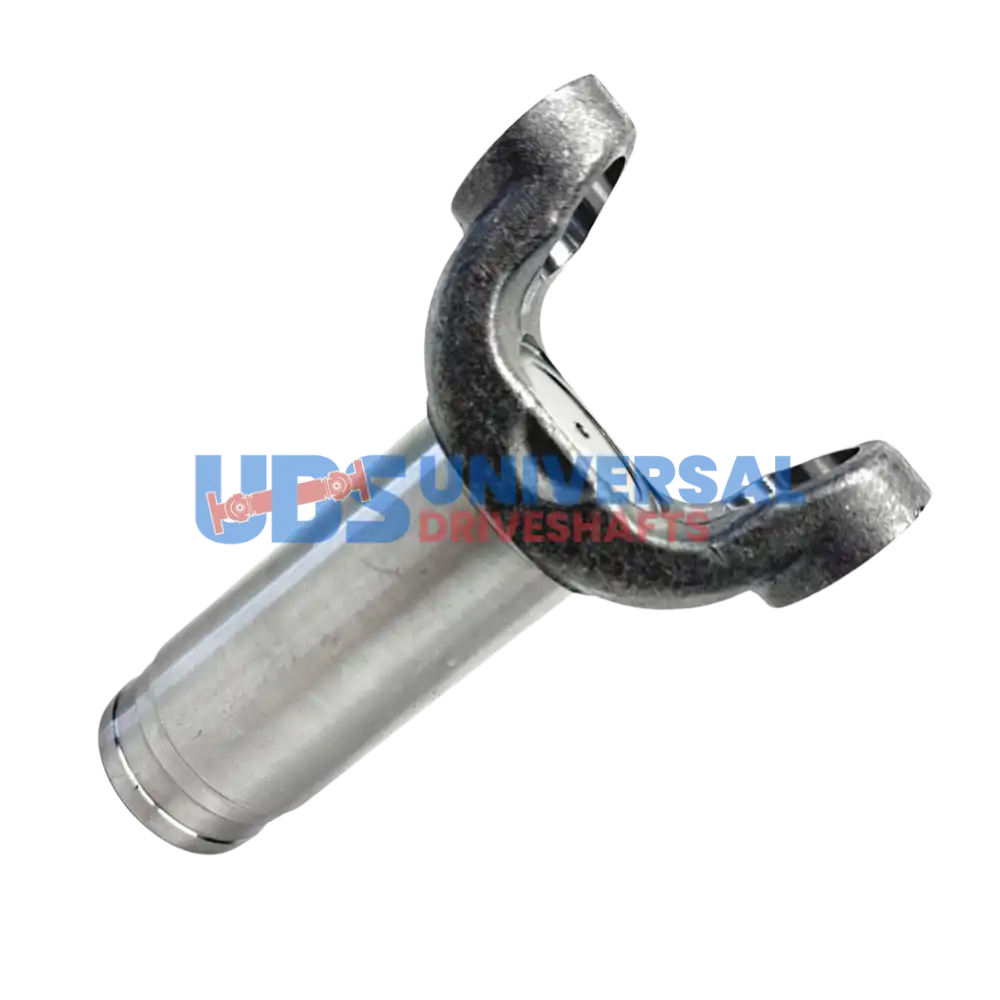

3-3-6041 Slip Yoke — 1410 series, 1.587 x 22/24 spline | 6.720″ CL-to-end. Premium direct replacement. Verify spline count and CL-to-end length.
Full Description
The 3-3-6041 slip yoke engages the transmission output shaft and allows the driveshaft to change effective length as the suspension cycles. It's a spline-specific part for 1410 series applications — the spline count and shaft diameter both have to match your transmission tailshaft exactly. Wrong spline count means it won't engage; wrong series means the u-joint won't fit the ears.
3-3-6041 Slip Yoke — 1410 Series Spline & Length Specs
The 1410 series covers HD trucks — F-250/350/450, Ram 2500/3500, Dana 60/70 axles. The 3-3-6041 slip yoke specs: 1.587 x 22/24 spline | 6.720" CL-to-end. The center-to-end dimension controls how much travel the driveshaft has as the suspension compresses and droop cycles. Too short on lifted vehicles means you'll hit the end of spline travel at full droop — and that means the driveshaft separates.
Verify spline count on your transmission output shaft before ordering the 3-3-6041 slip yoke. If the transmission was rebuilt or swapped, the tailshaft spline count may differ from the original application spec. Full spline engagement is non-negotiable — partial engagement under load damages the output shaft.
Key Features
- Series: 1410 — HD trucks — F-250/350/450, Ram 2500/3500, Dana 60/70 axles
- Spline: 1.587 x 22/24 — transmission tailshaft match required
- CL-to-end: 6.720" — determines driveshaft travel range, critical on lifted vehicles
- Brand: UDS
Specifications
- SKU: 3-3-6041
- Brand: UDS
- Series: 1410
- Spline Dia: 1.587
- Spline Count: 22/24
- CL to End: 6.720"
Additional information
| Center u joint to end |
6.720 |
|---|---|
| Series |
1410 |
| Splines count |
22/24 |
| Splines dia |
1.587 |
