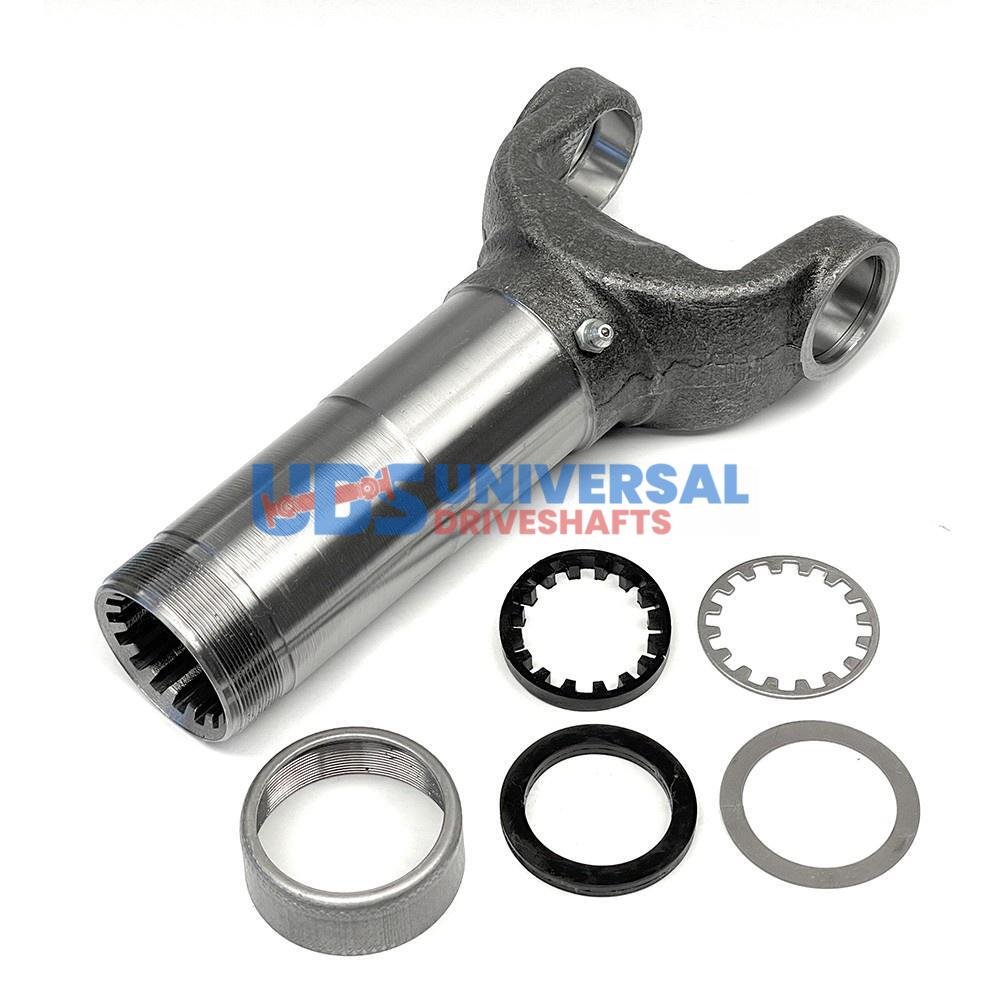

3-3-488KX Slip Yoke 1350 series, Splines: 1.500 x 16 spline Center Line To End: 7.312
$35.64
+50 in stock
Description
3-3-488KXU slip yoke, 1350 series, 16 splines at 1.500″ bore diameter, 7.312″ center-to-end. Direct replacement for transmission output shaft interface.
Full Description
Getting the right slip yoke requires verifying both spline profile and U-joint series before installation. The 3-3-488KXU is a 1350 series slip yoke with 16 splines and 1.500" bore diameter, compatible with standard 1350 series U-joint crosses and yokes.
Fitment Verification Guide
Before ordering a slip yoke, gather three measurements from the existing unit or your transmission shaft: spline tooth count, pitch diameter, and the center-of-U-joint to yoke-end distance. For the 3-3-488KXU, those values are 16 teeth, 1.500" diameter, and 7.312" center-to-end. A mismatch on any of these dimensions means this is not the correct part for your application.
Specifications Table
| Measurement | Value |
|---|---|
| SKU | 3-3-488KXU |
| Series | 1350 |
| Number of Splines | 16 |
| Spline Pitch Diameter | 1.500" |
| Center U-Joint to End | 7.312" |
Material and Construction
Slip yokes must handle both torsional and bending loads at the U-joint cross. The 3-3-488KXU is forged from medium-carbon alloy steel and heat-treated to balance hardness with toughness. Yoke ears are machined to close tolerance for the 1350 series bearing cup diameter, ensuring the U-joint cross seats without rocking in the bores.
Installation Notes
- Clean and inspect the transmission output shaft splines for deformation before installation
- Slide the 3-3-488KXU onto the output shaft and confirm it moves freely with only slight resistance
- Insert the U-joint cross into the yoke ears; verify bearing cups seat flush
- Install snap rings; confirm each ring snaps into its groove completely
- Check phasing of front and rear U-joints -- they must be in phase for smooth operation
Parts and Support
Universal Driveshafts carries 1350 series slip yokes, companion yokes, crosses, and complete driveshaft assemblies. The 3-3-488KXU is in stock for fast delivery. Use our live chat or call us to confirm fitment with your vehicle data.
Additional information
| Center u joint to end | 7.312 |
|---|---|
| Partn number | 3-3-488KX |
| Series | 1350 |
| Splines count | 16 |
| Splines dia | 1.500 |
