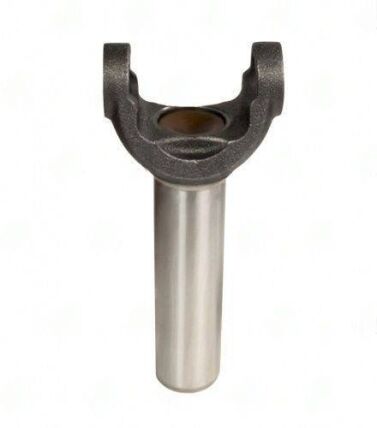

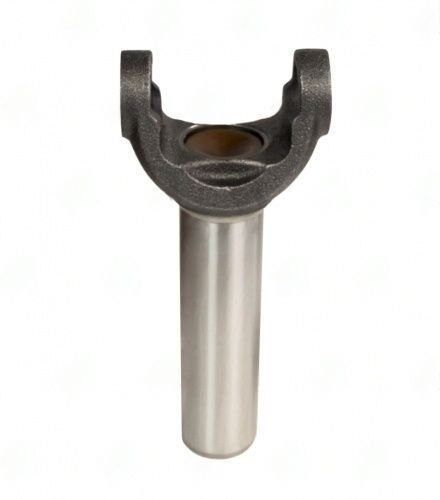

3-3-3931X Transmission Slip Yoke 1350 Series
$59.87
17 People watching this product now!
Description
1350 series 3-3-3931X transmission yoke. 29/30 1.326 spline | 1.681″ hub | 6.630″ CJ-to-end. Fits Viper.
Full Description
After a transmission swap or rebuild, the tailshaft spline count often changes. Verify the 3-3-3931X spline spec against your actual output shaft -- not just the original application.
3-3-3931X Transmission Yoke -- Fitment & Dimensions
The 1350 series is the standard for 3/4-ton trucks -- F-250, Ram 2500, Dana 44/60 axles, performance 4x4 builds. 3-3-3931X transmission yoke -- 29/30 1.326 spline | 1.681" hub | 6.630" CJ-to-end. Compatible with: Fits Viper.
The CJ-to-end dimension affects your driveshaft's working length. If you've changed transmission mount position or lengthened/shortened the driveshaft, verify this measurement before reusing your existing driveshaft.
Key Features
- Series: 1350 -- 3/4-ton trucks -- F-250, Ram 2500, Dana 44/60 axles, performance 4x4 builds
- Spline: 29/30 1.326 -- must match transmission tailshaft exactly
- Hub dia: 1.681" -- determines spline engagement depth on tailshaft
- CJ-to-end: 6.630" -- factors into driveshaft working length
- Compatible with: Fits Viper
Specifications
- SKU: 3-3-3931X
- Brand: UDS
- Series: 1350
- Spline Count x Dia: 29/30 1.326
- Hub Dia: 1.681"
- CJ to End: 6.630"
- Notes: Fits Viper
Additional information
| Center u joint to end | 6.630 |
|---|---|
| Counter bore dia | 0 |
| Hub dia | 1.681 |
| Notes | Fits Viper |
| Partn number | 3-3-3931X |
| Series | 1350 |
| Splines count dia | 29/30 1.326 |
