3-3-2041KX Slip Yoke 1410 series, Splines: 1.500×16 , Centerline to End 5.250
$43.77
20 in stock
18
People watching this product now!
Description
3-3-2041KX UDS 1410 series slip yoke. Splines: 16, CJ-to-end: 5.250″. Verify stop shaft spline count and diameter before ordering.
Full Description

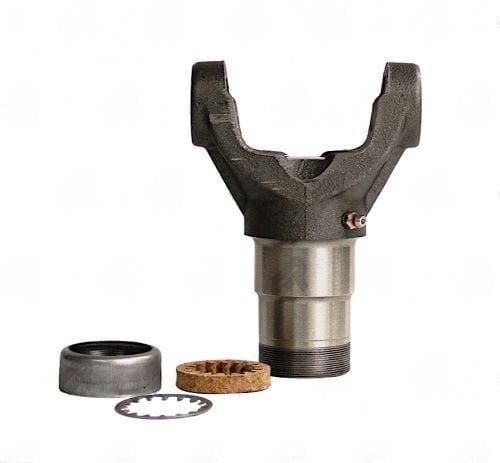

3-3-2041KX UDS 1410 Slip Yoke
The 3-3-2041KX is a 1410 series slip yoke manufactured by UDS. The slip yoke slides over the stop shaft — the splined stub welded onto the front section of the driveshaft tube — and telescopes in and out as the suspension cycles. This allows the driveshaft to change working length without binding.
The spline specification is 16; verify this matches the stop shaft before ordering. The centerline-to-end dimension is 5.250 inches, measured from the U-joint centerline to the open end of the spline bore. This controls minimum engagement depth under full suspension droop — ensure sufficient spline overlap remains at maximum driveshaft extension. The 1410 series ranks above 1350 in torque capacity, with a 1.188-inch cap diameter, suited for 1-ton and heavy-duty pickup trucks.
Specifications
- Part Number: 3-3-2041KX
- Brand: UDS
- Series: 1410
- Center u joint to end: 5.250
- Splines count: 16
- Splines dia: 1.500
Fitment & Installation Notes
When selecting the 3-3-2041KX, verify the stop shaft spline count and diameter match the 16 specification. Inspect the stop shaft for wear or damage; a worn shaft will produce lash even with a new yoke.
View the full range of Slip Yoke in 1410 and adjacent series configurations.
Additional information
| Center u joint to end | 5.250 |
|---|---|
| Partn number | 3-3-2041kx |
| Series | 1410 |
| Splines count | 16 |
| Splines dia | 1.500 |
