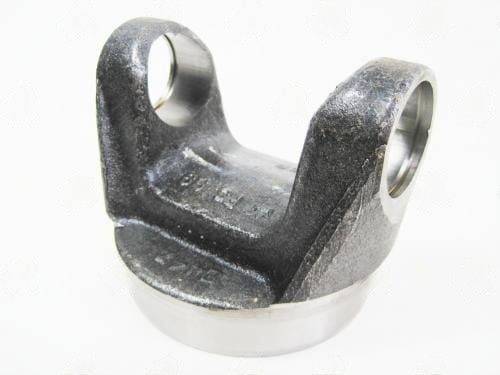

3-28-257 Weld Tube Yoke 1350 Ser’ , Fits: 3.500 x 0.065 Tube , Butt Dia: 3.381 CL To Weld: 1.812 Inch
$23.06
22 in stock
Description
Spicer 1350-series weld yoke for 3.500×0.065 thin-wall tube with 3.375″ butt diameter and 1.812″ centerline-to-weld.
Full Description
| Attribute | Specification |
|---|---|
| Part Number | 3-28-257 |
| Series | 1350 |
| Tube Diameter x Wall | 3.500" x 0.065" |
| Butt Diameter | 3.375" |
| Centerline to Weld | 1.812" |
| Material | Steel |
| Brand | Spicer |
- 0.065" wall -- thin-wall large-diameter tube; high critical speed with reduced weight compared to 0.083" or 0.095" wall at same OD
- 3.375" butt diameter: step calculation for 0.065" wall: 3.500" - 2x0.065" = 3.370" bore; 3.375" butt provides 0.005" interference
- 1.812" CL-to-weld -- slightly shorter than the 0.083" wall variants at 1.840" CL; reflects the 0.028" CL variation across the 1350 3.500" family
- Spicer-branded; OEM-tolerance manufacturing for production truck replacement
- Pair with Spicer 5-213X 1350 U-joint for this application
A thin-wall tube (0.065") at 3.500" OD is more susceptible to cross-section distortion from impact than thicker-wall alternatives. Any dent visible from below the vehicle in the mid-span of the tube alters the balance and potentially the torsional stiffness of the shaft. Even a 0.015" inward dent at midspan can move the center of mass enough to produce a detectable vibration above 3,500 RPM. Inspect the tube visually before and after any off-road excursion if the vehicle uses this specification. Replace rather than re-balance a dented shaft.
Additional information
| Butt dia | 3.375 |
|---|---|
| Center u j to weld | 1.812 |
| Material | STEEL |
| Partn number | 3-28-257 |
| Series | 1350 |
| Tube dia wall | 3.500X0.065 |
| Brand | SPICER |
