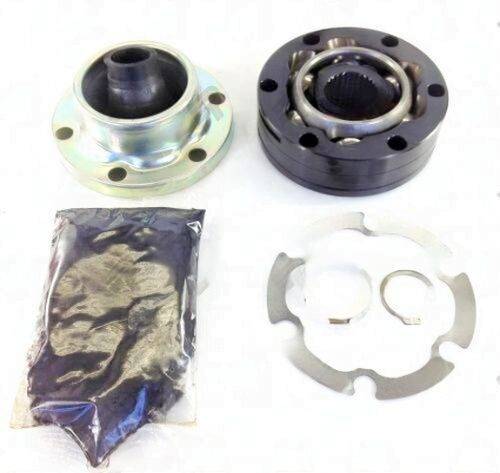

2752-1081 – CV Joint Kit – 31.2″ Splines dia – 108″ Outer Dia – 28 Spline
$117.72
0 in stock
13 People watching this product now!
Description
CV joint kit 2752-1081. 108 OD | 31.2 x 28 spline | 28 inner race width | 32.2 outer race width. BMW. Rzeppa design, complete kit.
Full Description
The 2752-1081 is a Rzeppa-style CV joint kit -- the standard constant velocity design for driveshaft applications requiring smooth power transfer at angle.
2752-1081 CV Joint Kit -- Rzeppa Specs & Fitment
Specs on the 2752-1081 CV joint kit: 108 OD | 31.2 x 28 spline | 28 inner race width | 32.2 outer race width. BMW.
The outer diameter determines fit in the housing bore. The spline count determines shaft engagement. Inner and outer race widths determine how the assembly stacks in the housing -- all four have to match.
Key Features
- Style: Rzeppa -- constant velocity design for smooth power delivery at angle
- Outer dia: 108 -- must fit housing bore exactly
- Spline: 31.2 x 28 -- shaft engagement spec
- Inner race width: 28 -- race stack dimension
- Outer race width: 32.2 -- housing bore dimension
- Complete kit -- all components matched for correct assembly and load distribution
- Note: BMW
Specifications
- SKU: 2752-1081
- Brand: UDS
- Style: Rzeppa
- Outer Dia: 108
- Spline Dia: 31.2
- Spline Count: 28
- Inner Race Width: 28
- Outer Race Width: 32.2
- Notes: BMW
Additional information
| Bolt hole count | 6 |
|---|---|
| Bolt hole dia | 10.4 |
| Boot cap part | INCLUDED |
| Gasket | INCLUDED |
| Inner race width | 28 |
| Outer dia | 108 |
| Outer race width | 32.2 |
| Splines count | 28 |
| Splines dia | 31.2 |
| Partn number | 2752-1081 |
| Notes | BMW |
