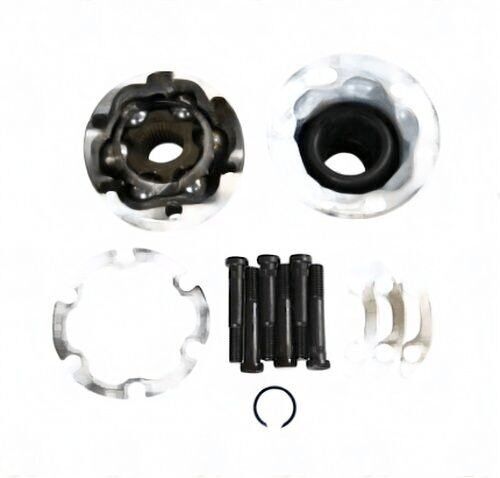

2752-9902 – CV Joint Kit – 26.8″ Splines dia – 10.4″ Bolt Hole Dia – 27.5″ Inner Race Width
$121.23
0 in stock
Description
2752-9902 BMW CV joint kit. 26.8mm spline, 32 splines, 99.4mm outer dia. 6-bolt, 10.4mm holes. Boot cap and gasket included. BMW driveshaft CV.
Full Description
2752-9902 CV Joint Kit -- BMW Application
2752-9902 is a BMW driveshaft CV joint kit with 26.8mm spline diameter and 32 spline teeth -- a higher spline count than most of the other BMW CV kits in this lineup (24-28 splines). Higher spline count at a similar pitch circle diameter produces shorter individual spline tooth height, which can affect engagement depth. Confirm the 32-spline specification against the shaft and female race before ordering.
| Spec | Value |
|---|---|
| Application | BMW |
| Spline Dia | 26.8mm |
| Spline Count | 32 |
| Outer Dia | 99.4mm |
| Inner Race Width | 27.5mm |
| Outer Race Width | 29mm |
| Bolt Holes | 6 x 10.4mm |
| Includes | Boot cap, gasket |
Compare 2752-9902 with 2752-9901 (28mm spline, 25T, 99.45mm OD) -- both are BMW applications at similar outer diameters but with different spline specifications. They are not interchangeable. Measure spline diameter with a micrometer and count the splines on the removed joint before ordering.
See CV joint kits for the full BMW and import CV joint range.
Additional information
| Bolt hole count | 6 |
|---|---|
| Bolt hole dia | 10.4 |
| Boot cap part | INCLUDED |
| Gasket | INCLUDED |
| Inner race width | 27.5 |
| Outer dia | 99.4 |
| Outer race width | 29 |
| Splines count | 32 |
| Splines dia | 26.8 |
| Notes | BMW |
| Partn number | 2752-9902 |
