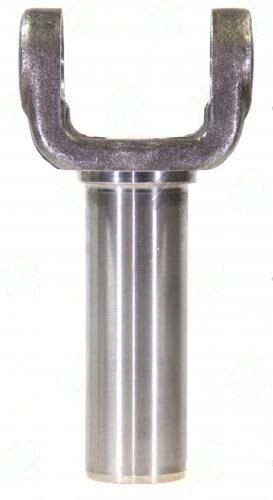

2603-25 – Transmission Yokes – 7260 Series – 23/25 X 1.083 Splines – 1.495″ Hub Dia
$72.92
11
People watching this product now!
Description
2603-25 Transmission Yoke — 7260 series, 23/25 X 1.083 spline | 1.495″ hub | 6.000″ CJ-to-end. Mazda, Some Early Mustangs. Professional direct replacement.
Full Description
The 2603-25 transmission yoke is the connection between the gearbox tailshaft and the front of the driveshaft. It splines onto the transmission output shaft and carries the front u-joint of the driveshaft. For 7260 series applications, the spline count and hub diameter are the two specs that determine whether this part fits your tailshaft correctly.
2603-25 Transmission Yoke — 7260 Series Specs & Tailshaft Fit
The 7260 series covers GM light trucks and vans using the Dana 7260 cross pattern. The 2603-25 transmission yoke specs: 23/25 X 1.083 spline | 1.495" hub | 6.000" CJ-to-end. Compatible with: Mazda, Some Early Mustangs. Hub diameter determines engagement depth on the tailshaft — if the hub is too short, the splines don't fully engage. CJ-to-end affects driveshaft working length.
After a transmission rebuild or swap, confirm the tailshaft spline count hasn't changed before installing the 2603-25 transmission yoke. Not all 7260 series transmissions use the same output spline across all years and configurations. Count the splines on the actual shaft.
Key Features
- Series: 7260 — GM light trucks and vans using the Dana 7260 cross pattern
- Spline: 23/25 X 1.083 — must match transmission tailshaft
- Hub dia: 1.495" — determines spline engagement depth
- CJ-to-end: 6.000" — affects driveshaft working length
- Compatible with: Mazda, Some Early Mustangs
- Brand: UDS
Specifications
- SKU: 2603-25
- Brand: UDS
- Series: 7260
- Spline: 23/25 X 1.083
- Hub Dia: 1.495"
- CJ to End: 6.000"
- Notes: Mazda, Some Early Mustangs
Additional information
| Center u joint to end |
6.000 |
|---|---|
| Counter bore dia |
1.179 |
| Hub dia |
1.495 |
| Notes |
Mazda, Some Early Mustangs |
| Partn number |
2603-25 |
| Series |
7260 |
| Splines count dia |
23/25 X 1.083 |
