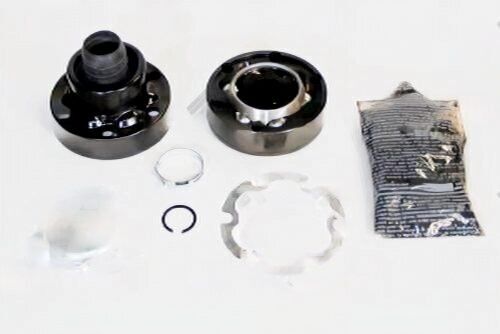

2552-1003 – CV Joint Kit – 26.92″ Splines dia – 99.55″ Outer Dia – 32 Spline
$168.64
0 in stock
19 People watching this product now!
Description
2552-1003 CV joint kit — Rzeppa. 99.55 OD | 26.92 x 32 spline | 27.07 inner race width | 27.8 outer race width. Complete assembly, all components matched.
Full Description
CV joints fail gradually -- click on turns, vibration under load, then grease everywhere. The 2552-1003 CV joint kit is the complete replacement before it gets to that last stage.
2552-1003 CV Joint Kit -- Rzeppa Specs & Fitment
Specs on the 2552-1003 CV joint kit: 99.55 OD | 26.92 x 32 spline | 27.07 inner race width | 27.8 outer race width. CADILLAC.
The outer diameter determines fit in the housing bore. The spline count determines shaft engagement. Inner and outer race widths determine how the assembly stacks in the housing -- all four have to match.
Key Features
- Style: Rzeppa -- constant velocity design for smooth power delivery at angle
- Outer dia: 99.55 -- must fit housing bore exactly
- Spline: 26.92 x 32 -- shaft engagement spec
- Inner race width: 27.07 -- race stack dimension
- Outer race width: 27.8 -- housing bore dimension
- Complete kit -- all components matched for correct assembly and load distribution
- Note: CADILLAC
Specifications
- SKU: 2552-1003
- Brand: UDS
- Style: Rzeppa
- Outer Dia: 99.55
- Spline Dia: 26.92
- Spline Count: 32
- Inner Race Width: 27.07
- Outer Race Width: 27.8
- Notes: CADILLAC
Additional information
| Bolt hole count | 6 |
|---|---|
| Bolt hole dia | 10.4 |
| Boot cap part | 2518-652 |
| Gasket | INCLUDED |
| Inner race width | 27.07 |
| Outer dia | 99.55 |
| Outer race width | 27.8 |
| Splines count | 32 |
| Splines dia | 26.92 |
| Notes | CADILLAC |
| Partn number | 2552-1003 |
