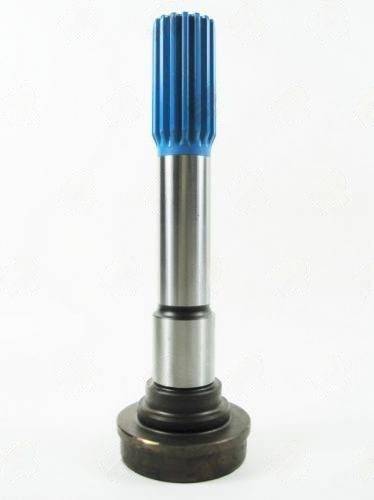

2-53-681 Midship Slip Yoke , Splines: 1.375×16 , Fits: 2.500×0.083 Tube, Weld To End: 8.875 Butt Diameter: 2.344
$69.21
44 in stock
11 People watching this product now!
Description
2-53-681 midshaft stub. 16 X 1.375 spline | 2.500″ spline length | 2.344″ butt dia | 8.875″ end-to-weld | fits 2.500 tube. Verify spline count and butt diameter — solid tube-fit construction.
Full Description
Bent midshaft stubs don't always look bent. Put it on a lathe or V-blocks and check runout -- more than 0.005" and it needs to be replaced. The 2-53-681 is the new part.
2-53-681 Midshaft Stub -- Spline & Tube Dimensions
Specs on the 2-53-681 midshaft stub: 16 X 1.375 spline | 2.500" spline length | 2.344" butt dia | 8.875" end-to-weld | fits 2.500 tube.
End-to-weld dimension determines how much of your driveshaft's total length is consumed by this stub section. Factor it into your overall shaft length calculation.
Key Features
- Spline: 16 X 1.375 -- verify against transmission or T-case output shaft
- Spline length: 2.500" -- full engagement required
- Butt dia: 2.344" -- seats inside driveshaft tube, must match tube ID
- End-to-weld: 8.875" -- length consumed in total driveshaft assembly
- Tube compatibility: 2.500 -- designed for this tube specification
- Bearing dia: 1.378" -- matches center support bearing inner race
Specifications
- SKU: 2-53-681
- Brand: UDS
- Spline Count x Dia: 16 X 1.375
- Spline Length: 2.500"
- Butt Dia: 2.344"
- End to Weld: 8.875"
- Tube Fit: 2.500
- Bearing Dia: 1.378"
Additional information
| Bearing dia | 1.378 |
|---|---|
| Butt dia | 2.344 |
| End to weld | 8.875 |
| Partn number | 2-53-681 |
| Splines count dia | 16 X 1.375 |
| Splines length | 2.500 |
| Tube dia | 2.500 |
| Tube wall | 0.083" |
| Style | Slip |
More Parts from the same Category
Filters Sort results
Reset Apply
Image | Part # | Part Details | Price | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stub & Midship Shaft (170) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Partn number 1253-242 Butt dia 1.875 Splines count dia 24 x 0.995 End to weld 2.875 Style FIXED Notes use is with : 1204-241 nut sold sepratly: 858018 Tube dia 2.000 Tube wall 0.065" | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Butt dia 2.375 End to weld 3.125 Notes USE WITH: 1204-261 , Uses 858018 nut Partn number 1253-261 Splines count dia 26 x 1.115 Splines length 1.120 Tube dia 2.500 Tube wall 0.065" Style FIXED | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Bearing dia 1.181 Butt dia 1.875 End to weld 2.875 Notes USE WITH: 1204-261 , Uses 858018 nut Partn number 1253-262 Splines count dia 26 x 1.115 Splines length 1.180 Tube dia 2.000 Tube wall 0.065" Style FIXED | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Bearing dia 1.181 Butt dia 2.375 End to weld 6.625 Notes This stub also has snap ring groove at 16mm to retain bearing. USE IT WITH: 2252-682 Partn number 1254-681 Splines count dia 19 X 0.850 Splines length 775 Tube dia 2.500 Style CVJ Tube wall 0.065" | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Bearing dia 1.181 Butt dia 2.344 End to weld 6.625 Notes use it with: 2252-682 Partn number 1254-683 Splines count dia 19 X 0.850 Splines length 775 Tube dia 2.500 Tube wall 0.083" Style CVJ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Butt dia 2.435 End to weld 7.500 Notes TOYOTA Partn number 1340-20 Splines count dia 20 X 1.310 Splines length 1.765 Tube dia 2.560 Tube wall 0.065" Style Slip | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Butt dia 2.435 End to weld 9.375 Notes Toyota, Sold only in kit 1343-20L Partn number 1340-20L Splines count dia 20 X 1.310 Splines length 6.500 Tube dia 2.560 Tube wall 0.065" Style Slip | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Butt dia 2.435 End to weld 6.375 Notes TOYOTA Partn number 1340-21 Splines count dia 20 X 1.310 Splines length 1.880 Tube dia 2.560 Tube wall 0.065" Style Slip | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Bearing dia 1.181 Butt dia 2.435 End to weld 4.000 Notes Fits Toyota OE Tube / 1374-233 nut included ⋅ Use with: 1301-231 Partn number 1353-231 Splines count dia 23 X 0.990 Splines length 1.375 Tube dia 2.560 Tube wall 0.065" Style FIXED | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Bearing dia 1.181 Butt dia 2.344 End to weld 4.000 Notes Fits Toyota OE Tube / 1374-233 nut included ⋅ Use with: 1301-231 Partn number 1353-232 Splines count dia 23 X 0.990 Splines length 1.375 Tube dia 2.500 Tube wall 0.083" Style FIXED | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
