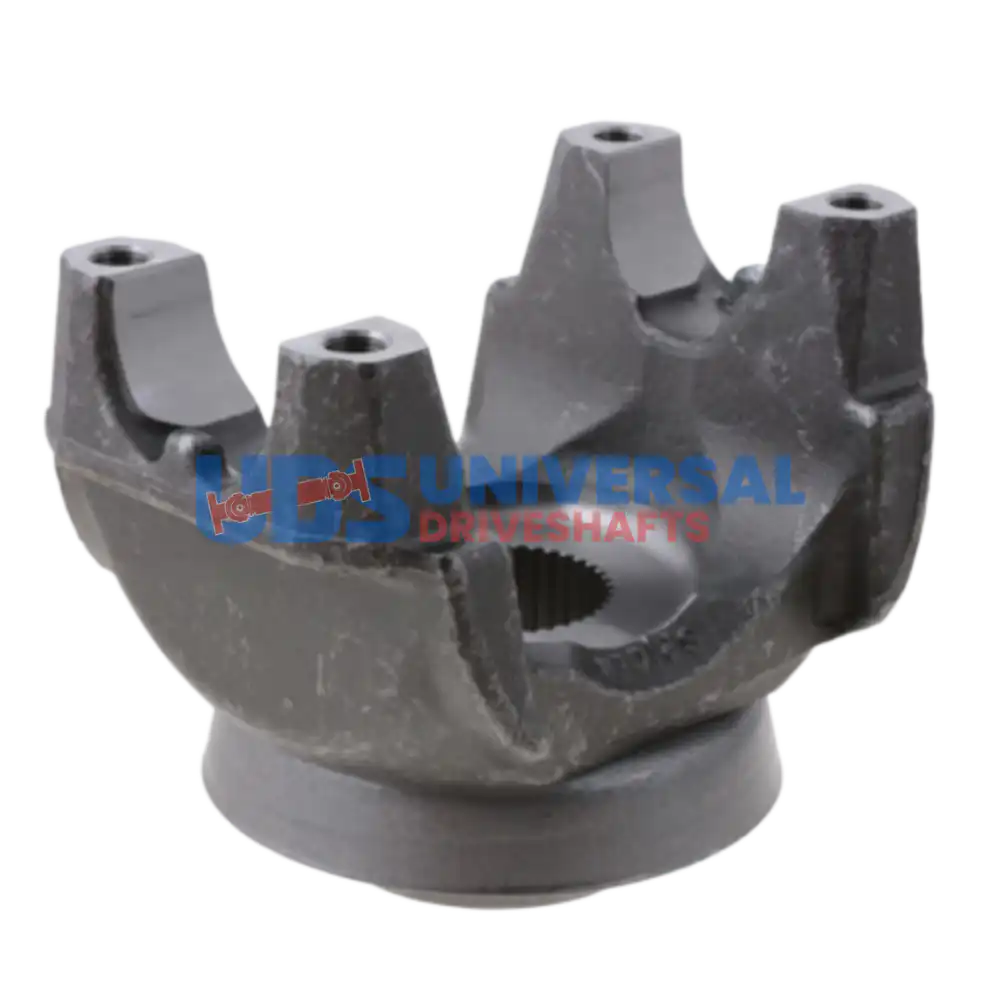

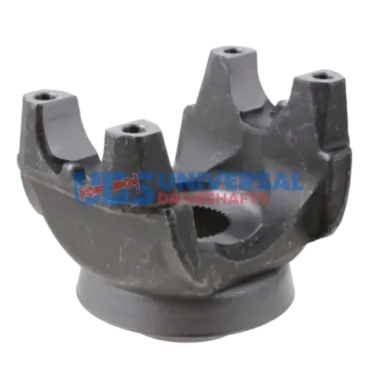

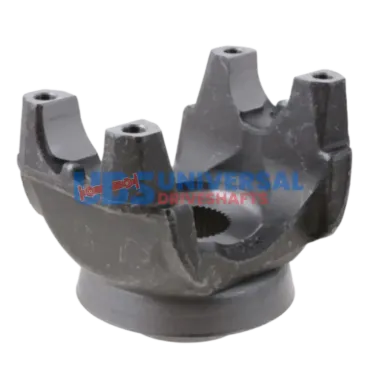

6-4-7631-1X End Yoke 1710HR Differential Yoke
$195.37
5 in stock
14
People watching this product now!
Description
6-4-7631-1X 1710 HR end yoke. Splines: 39 at 2.024″ dia, hub dia 3.000″, CJ-to-end 5.156″. Verify spline count and diameter against output shaft before ordering.
Full Description
6-4-7631-1X 1710 HR End Yoke Differential 39 Splines 2.024" Dia 3.000" Hub
The 6-4-7631-1X is a 1710 series HR (half-round) style end yoke for differential applications. It has 39 splines at 2.024" diameter, a CJ-to-end dimension of 5.156", a hub diameter of 3.000", and a through-hole diameter of 2.312".
Specifications
- Part Number: 6-4-7631-1X
- Series: 1710
- Style: HR (Half-Round)
- Splines Count: 39
- Spline Diameter: 2.024"
- Hub Diameter: 3.000"
- CJ to End: 5.156"
- Through Hole: 2.312"
When fitting the 6-4-7631-1X, verify the differential output shaft has 39 splines at 2.024" spline diameter. The 3.000" hub diameter must match the yoke bearing retention bore in your differential housing. The 2.312" through-hole accommodates an axle shaft or fastener — confirm the through-hole is correct for your axle configuration before ordering.
The HR (half-round) style designation on the 6-4-7631-1X refers to the U-joint snap ring retention groove configuration, which differs from the BP (bolt-plate) style. The 1710 series accepts 1.938" cap diameter U-joints at the ear end. The 39-spline count at 2.024" is specific to certain heavy-duty differential flanges — measure spline count and diameter on your output shaft before ordering the 6-4-7631-1X.
Additional information
| Cj to end | 5.156 |
|---|---|
| Hub dia | 3.000″ |
| Partn number | 6-4-7631-1X |
| Series | 1710 |
| Splines count | 39 |
| Splines dia | 2.024 |
| Style | HR |
| Through hole | 2.312 |
