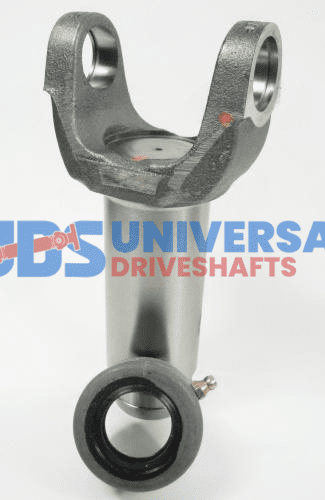

2-3-8001KX – Slip Yoke – 1310 Series – 1.375″ Splines Dia – Center U Joint To End 6.812
$37.17
5 in stock
Description
2-3-8001KX slip yoke, 1310 series, 16 splines at 1.375″ bore diameter, 6.812″ center-to-end. Direct replacement for transmission output shaft interface.
Full Description
Built for Forged, the 2-3-8001KX slip yoke provides the axial compliance your driveline needs to accommodate suspension movement without vibration or binding. This 1310 series unit carries 16 splines at 1.375" diameter for a precise, rattle-free fit on the transmission output shaft.
Product Description
Slip yoke replacement is often overlooked during driveshaft service, yet a worn yoke is frequently the root cause of vibration complaints that return after U-joint replacement. The 2-3-8001KX restores the correct spline-to-bore clearance and presents an undamaged sliding surface to the extension housing seal, eliminating leak paths that develop with worn OEM yokes.
Part Details
| Detail | Specification |
|---|---|
| SKU | 2-3-8001KX |
| Driveshaft Series | 1310 |
| Spline Count | 16 |
| Spline Bore Dia. | 1.375" |
| U-Joint Center to Yoke End | 6.812" |
| Fitment Notes | Forged |
Series Compatibility
The 1310 series U-joint cross bores must match the yoke ear dimensions of the 2-3-8001KX. Do not mix series -- a 1310 slip yoke should be paired only with a 1310 or compatible-series cross and companion yoke. Mismatched series results in incorrect snap ring grooves and potential joint separation under load.
Replacement Guidance
- Confirm 16-tooth count and 1.375" diameter match your transmission output shaft
- Measure center-to-end dimension if your application has tight length constraints
- Use assembly lube on splines during installation
- Reinstall transmission extension seal if it shows any sign of wear
- Phasing: reinstall driveshaft in the original orientation (mark before removal)
Why Universal Driveshafts
We specialize in driveline components across all series and vehicle types. The 2-3-8001KX is part of our standard inventory -- no waiting on special orders. Our team can cross-reference by vehicle year/make/model or by direct measurement to confirm the right part every time.
Alternative parts:
Additional information
| Center u joint to end | 6.812 |
|---|---|
| Notes | Forged |
| Partn number | 2-3-8001kx |
| Series | 1310 |
| Splines count | 16 |
| Splines dia | 1.375 |
