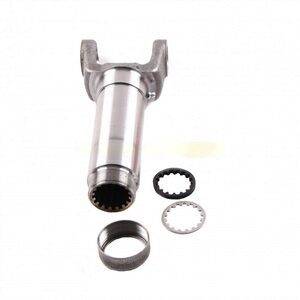

2-3-5821KX Slip Yoke 1310 series, Splines: 1.375×16 Center Joint To End 7.875 Heavy Duty
$41.25
21 in stock
17
People watching this product now!
Description
2-3-5821Kx Slip Yoke — 1310 series, 1.375 x 16 spline | 7.875″ CL-to-end. Premium direct replacement. Verify spline count and CL-to-end length.
Full Description
The 2-3-5821KX slip yoke engages the transmission output shaft and allows the driveshaft to change effective length as the suspension cycles. It's a spline-specific part for 1310 series applications — the spline count and shaft diameter both have to match your transmission tailshaft exactly. Wrong spline count means it won't engage; wrong series means the u-joint won't fit the ears.
2-3-5821Kx Slip Yoke — 1310 Series Spline & Length Specs
The 1310 series covers light-duty trucks — F-150, Silverado 1500, Jeep Wrangler, Ram 1500. The 2-3-5821KX slip yoke specs: 1.375 x 16 spline | 7.875" CL-to-end. Use Part number 2-3-3738 For Longer travel slip Yoke. The center-to-end dimension controls how much travel the driveshaft has as the suspension compresses and droop cycles. Too short on lifted vehicles means you'll hit the end of spline travel at full droop — and that means the driveshaft separates.
Verify spline count on your transmission output shaft before ordering the 2-3-5821KX slip yoke. If the transmission was rebuilt or swapped, the tailshaft spline count may differ from the original application spec. Full spline engagement is non-negotiable — partial engagement under load damages the output shaft.
Key Features
- Series: 1310 — light-duty trucks — F-150, Silverado 1500, Jeep Wrangler, Ram 1500
- Spline: 1.375 x 16 — transmission tailshaft match required
- CL-to-end: 7.875" — determines driveshaft travel range, critical on lifted vehicles
- Brand: UDS
- Note: Use Part number 2-3-3738 For Longer travel slip Yoke
Specifications
- SKU: 2-3-5821KX
- Brand: UDS
- Series: 1310
- Spline Dia: 1.375
- Spline Count: 16
- CL to End: 7.875"
- Notes: Use Part number 2-3-3738 For Longer travel slip Yoke
Additional information
| Series |
1310 |
|---|---|
| Notes |
Use Part number 2-3-3738 For Longer travel slip Yoke |
| Partn number |
2-3-5821KX |
| Splines dia |
1.375 |
| Splines count |
16 |
| Center u joint to end |
7.875 |
