Slip Yoke 1310 Series 1.250X16 Centerline to End 5″
$23.68
+50 in stock
Description
2-3-1421KX 1310 series slip yoke. 1.250″ spline, 16 splines, CJ to end 5.000″. Slip yoke mounts on transmission output stub and allows driveshaft plunge.
Full Description

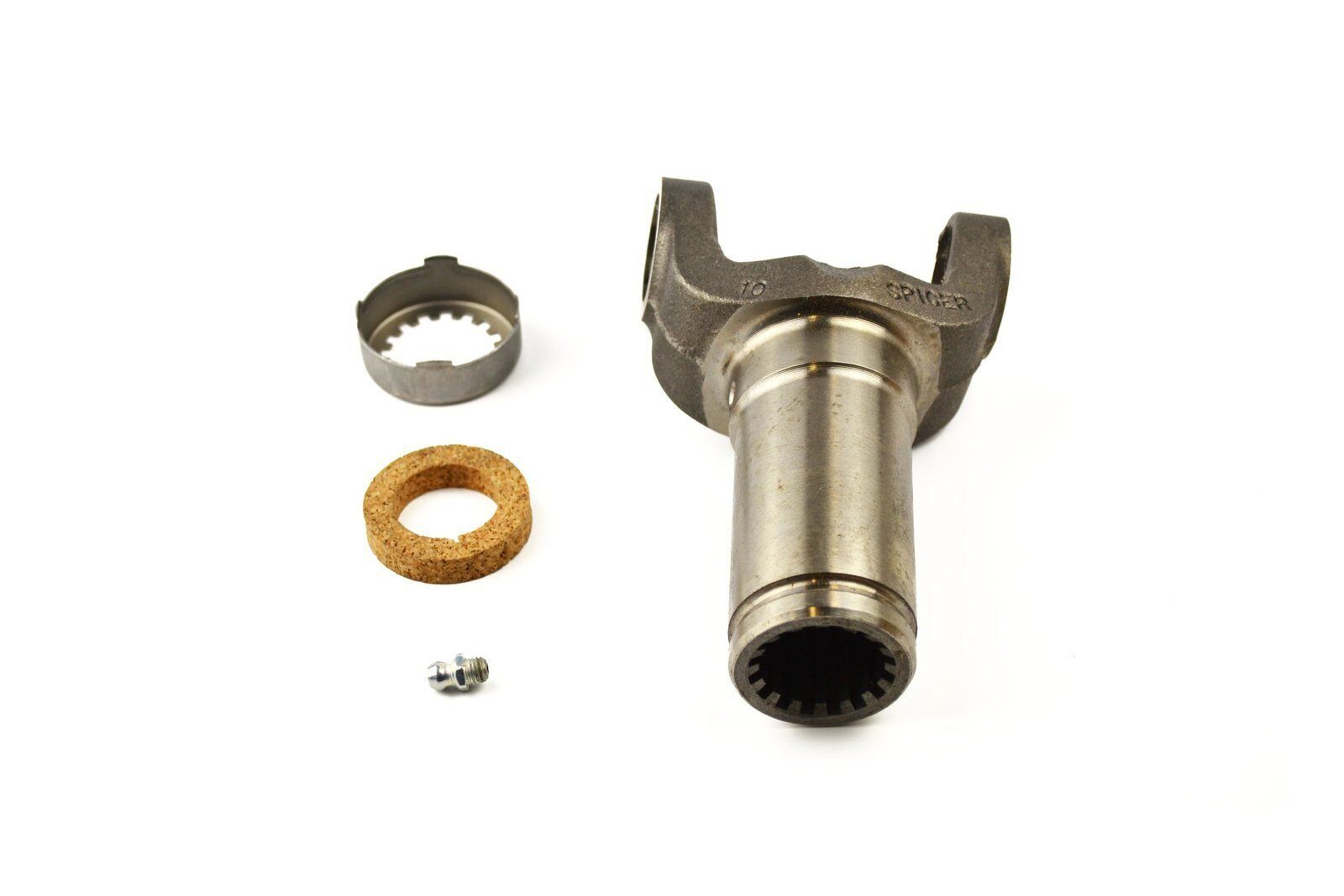

2-3-1421KX -- 1310 Series Slip Yoke
The 2-3-1421KX is a 1310 series slip yoke with a 1.250" spline diameter, 16 splines, and a centerline-to-end distance of 5.000". A slip yoke installs on the transmission output shaft -- the splines allow the yoke to slide axially (telescope) as the driveshaft angle changes with suspension movement, while the U-joint interface at the other end transmits torque to the driveshaft tube.
| Spec | Value |
|---|---|
| Series | 1310 |
| Spline Dia | 1.250" |
| Spline Count | 16 |
| CJ to End | 5.000" |
The 1.250" x 16 spline is a common GM/Ford transmission output shaft specification for light-duty applications. Confirm the transmission output shaft spline count and diameter match this slip yoke before ordering. A wrong spline count will prevent the yoke from engaging the shaft.
Browse all slip yokes for 1310 and other series transmission applications.
Not sure which slip yoke you need? Our transmission slip yoke guide covers spline counts, styles, and how to measure.
Additional information
| Series | 1310 |
|---|---|
| Splines count | 16 |
| Splines dia | 1.250 |
| Center u joint to end | 5.000 |
| Partn number | 2-3-1421KX |
