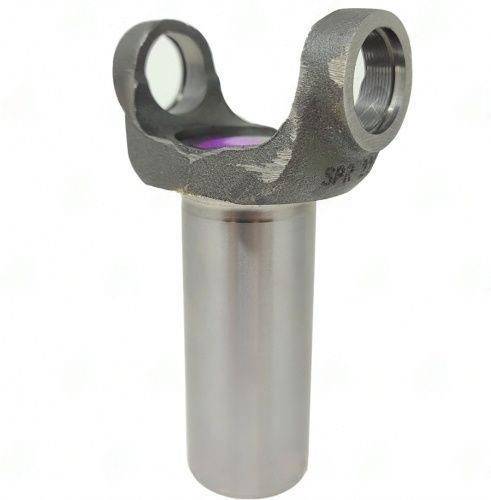

2-3-5281X – Transmission Yokes – 1310 Series – 31/31 X 1.397 Splines – 1.685″ Hub Dia
$224.79
17 People watching this product now!
Description
2-3-5281X Transmission Yoke — 1310 series, 31/31 X 1.397 spline | 1.685″ hub | 5.188″ CJ-to-end. TH400 with smaller seal. Genuine direct replacement.
Full Description
The 2-3-5281X transmission yoke is the connection between the gearbox tailshaft and the front of the driveshaft. It splines onto the transmission output shaft and carries the front u-joint of the driveshaft. For 1310 series applications, the spline count and hub diameter are the two specs that determine whether this part fits your tailshaft correctly.
2-3-5281X Transmission Yoke — 1310 Series Specs & Tailshaft Fit
The 1310 series covers light-duty trucks — F-150, Silverado 1500, Jeep Wrangler, Ram 1500. The 2-3-5281X transmission yoke specs: 31/31 X 1.397 spline | 1.685" hub | 5.188" CJ-to-end. Compatible with: TH400 with smaller seal. Hub diameter determines engagement depth on the tailshaft — if the hub is too short, the splines don't fully engage. CJ-to-end affects driveshaft working length.
After a transmission rebuild or swap, confirm the tailshaft spline count hasn't changed before installing the 2-3-5281X transmission yoke. Not all 1310 series transmissions use the same output spline across all years and configurations. Count the splines on the actual shaft.
Key Features
- Series: 1310 — light-duty trucks — F-150, Silverado 1500, Jeep Wrangler, Ram 1500
- Spline: 31/31 X 1.397 — must match transmission tailshaft
- Hub dia: 1.685" — determines spline engagement depth
- CJ-to-end: 5.188" — affects driveshaft working length
- Compatible with: TH400 with smaller seal
- Brand: UDS
Specifications
- SKU: 2-3-5281X
- Brand: UDS
- Series: 1310
- Spline: 31/31 X 1.397
- Hub Dia: 1.685"
- CJ to End: 5.188"
- Notes: TH400 with smaller seal
Additional information
| Center u joint to end | 5.188 |
|---|---|
| Counter bore dia | 880 |
| Hub dia | 1.685 |
| Notes | TH400 with smaller seal |
| Partn number | 2-3-5281X |
| Series | 1310 |
| Splines count dia | 31/31 X 1.397 |
