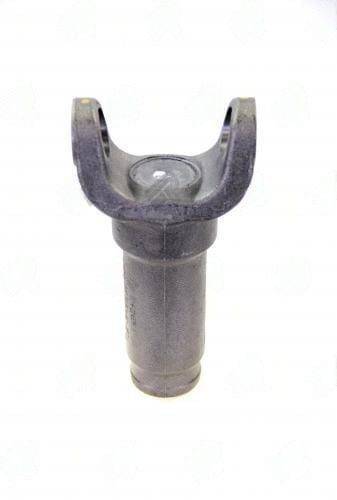

2-3-15651X – Slip Yoke – 1330 Series – 1.338″ Splines Dia – Center U Joint To End 6.724
$61.84
10 in stock
17 People watching this product now!
Description
1330 series 2-3-15651X slip yoke. 1.338 x 18/20 spline | 6.724″ CL-to-end. Slides onto transmission output shaft — spline-specific fitment.
Full Description
Slip yoke wear shows up as a shudder at low speed and a clunk when you let off the throttle. The 2-3-15651X is the direct replacement for the 1330 series application.
2-3-15651X Slip Yoke -- 1330 Series Spline Specs
The 1330 series is the standard for light-to-medium duty GM half-ton and Dodge Dakota platforms.
Specs on the 2-3-15651X slip yoke: 1.338 x 18/20 spline | 6.724" CL-to-end. Toyota Tacoma - Spicer. Verify spline count and diameter. If your transmission was swapped or rebuilt with an aftermarket tail housing, the output spline count may differ from factory.
Key Features
- Series: 1330 -- light-to-medium duty GM half-ton and Dodge Dakota platforms
- Spline: 1.338 x 18/20 -- must match transmission output shaft exactly
- CL-to-end: 6.724" -- determines driveshaft travel range, critical on lifted vehicles
- Note: Toyota Tacoma - Spicer
Specifications
- SKU: 2-3-15651X
- Brand: UDS
- Series: 1330
- Spline Dia: 1.338
- Spline Count: 18/20
- CL to End: 6.724"
- Notes: Toyota Tacoma - Spicer
Additional information
| Center u joint to end | 6.724 |
|---|---|
| Notes | Toyota Tacoma – Spicer |
| Partn number | 2-3-15651X |
| Series | 1330 |
| Splines count | 18/20 |
| Splines dia | 1.338 |
