2-28-1707 Weld Tube Yoke 1330 Ser’ , Fits : 2.500 x 0.083 Tube , Butt: 2.344 CL to Weld: 1.720 Inch
$19.04
+50 in stock
Description

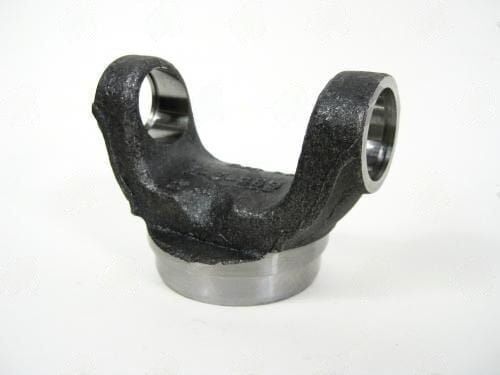

Spicer 1330-series weld yoke for 2.500×0.083 tube with 2.344″ butt diameter and 1.719″ centerline-to-weld.
Full Description
| Attribute | Specification |
|---|---|
| Part Number | 2-28-1707 |
| Series | 1330 |
| Tube Diameter x Wall | 2.500" x 0.083" |
| Butt Diameter | 2.344" |
| Centerline to Weld | 1.719" |
| Material | Steel |
| Brand | Spicer |
- 1330 series: 1.062" cap U-joint at 1330-specific cup depth; cross-reference Spicer 5-3250X
- 2.500" x 0.083" tube -- compact light-truck and passenger car specification; butt diameter 2.344" is universal across 1310, 1330, 1350, and 7260 series at this wall
- 1.719" CL-to-weld -- among the shortest in the 1330 catalog; compact yoke body for tight packaging
- Spicer-branded -- OEM-tolerance manufacturing; appropriate for production-quality vehicle drivetrain repairs
- Complete with Spicer 5-3250X 1330 U-joint for a fully Spicer-branded assembly
The 2.500"x0.083" tube with 1330-series joints is the configuration used on a wide range of small-block-powered 1970s--1990s domestic passenger cars, compact trucks, and import-market SUVs where the 1310 series would be marginally adequate but the 1330 provides a useful torque margin without the added weight of moving to 1350. When replacing this Spicer yoke, confirm the replacement joint is 1330-series -- cap OD is 1.062" for both 1310 and 1330, and ordering by cap OD alone will result in incorrect cup depth engagement as previously described.
Additional information
| Butt dia | 2.344 |
|---|---|
| Center u j to weld | 1.719 |
| Material | STEEL |
| Partn number | 2-28-1707 |
| Series | 1330 |
| Tube dia wall | 2.500X0.083 |
| Brand | SPICER |
