2-28-1717 Weld Tube Yoke 1330 Ser’ , Fits: 3.500 x 0.083 Butt: 3.344 Inch , Centerline To Weld:1.812 Inch
$20.73
50 in stock
Description

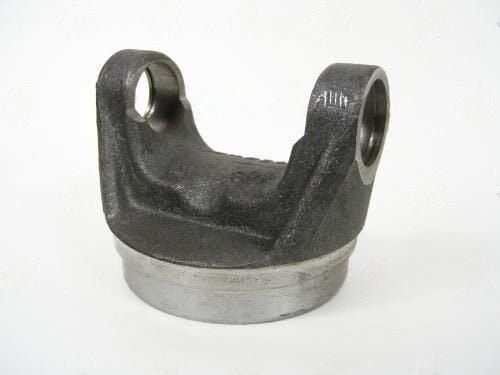

1330-series steel weld yoke for 3.500×0.083 tube with 3.344″ butt diameter and 1.812″ centerline-to-weld.
Full Description
Series Selector at 3.500x0.083 Tube: Four series fit this tube spec at 3.344" butt diameter: 1330 (this part, 1.812" CL), 1350 (3-28-427, 1.840" CL), 1410 (3-28-557, 2.125" CL), and 1480 (3-28-547/567, 2.031" CL). Choose by required joint capacity, not convenience. The 1330 is appropriate for light trucks and unmodified SUVs; the 1350 for moderate towing; the 1410 for heavy or high-angle applications; the 1480 for sustained heavy towing or high-horsepower builds.
The 2-28-1717 is the standard 1330-series weld yoke for 3.500"x0.083" tube -- one of the most common sizes in the light and medium-duty truck driveshaft category. The 3.344" butt diameter is the standard for all 3.500"x0.083" tube weld yokes across all applicable series. The 1.812" CL-to-weld is the shortest among the series options at this tube size, reflecting the smaller 1330 joint body. The 1330 U-joint (1.062" cap, 1330-cup depth) is required at the ear bore. Spicer 5-3250X is the primary OEM cross-reference for 1330-series joints.
Additional information
| Butt dia | 3.344 |
|---|---|
| Center u j to weld | 1.812 |
| Material | STEEL |
| Partn number | 2-28-1717 |
| Series | 1330 |
| Tube dia wall | 3.500X0.083 |
| Brand | UDS |
