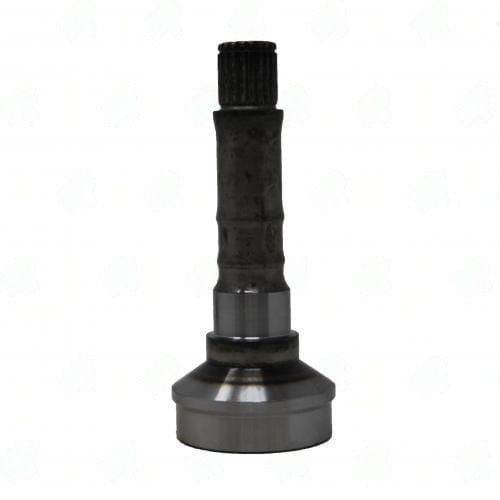

1453-862 – Stub Midship Shaft – Bearing Dia 1.181″ – Butt Dia 2.375″ – Tube Dia Wall 2.500X0.065
$88.16
1 in stock
14 People watching this product now!
Description
1453-862 stub midship shaft — CVJ style. Bearing dia: 1.181″. Butt: 2.375″. Splines: 21 x 0.900″. End-to-weld: 5.395″. Use with 1452-8602.
Full Description
The 1453-862 is a CVJ-style stub midship shaft with the same 1.181" bearing and 21 x 0.900" spline as the 1453-863 (slip style), but uses CVJ interface and 2.500" OD tube rather than the 2.000" OD on the 863. This tube size increase accommodates higher torque loading. The mating component is 1452-8602, per catalog data.
The 5.395" end-to-weld positions the tube weld approximately 5.4 inches from the bearing eye centerline. This compact end-to-weld is consistent with a midship section where the bearing sits relatively close to the tube end in the overall shaft layout.
- Part Number: 1453-862
- Style: CVJ
- Bearing Diameter: 1.181"
- Butt Diameter: 2.375"
- Tube OD: 2.500"
- Tube Wall: 0.065"
- End-to-Weld: 5.395"
- Spline: 21 x 0.900"
- Spline Length: 0.931"
- Mating Yoke: 1452-8602
Comparing the 1453-86X series: 1453-860 (CVJ, 1.875" butt, 2.000" x 0.065" tube), 1453-861 (CVJ, 1.844" butt, 2.000" x 0.083" tube), 1453-862 (CVJ, 2.375" butt, 2.500" x 0.065" tube), 1453-863 (slip, 2.344" butt, 2.000" x 0.083" tube). The butt diameter directly indicates the tube bore size for each variant.
Browse stub and midship shafts.
Additional information
| Bearing dia | 1.181 |
|---|---|
| Butt dia | 2.375 |
| End to weld | 5.395 |
| Notes | USED WITH: 1452-8602 |
| Partn number | 1453-862 |
| Splines count dia | 21 X 0.900 |
| Splines length | 0.931 |
| Tube dia | 2.500 |
| Tube wall | 0.065″ |
| Style | CVJ |
