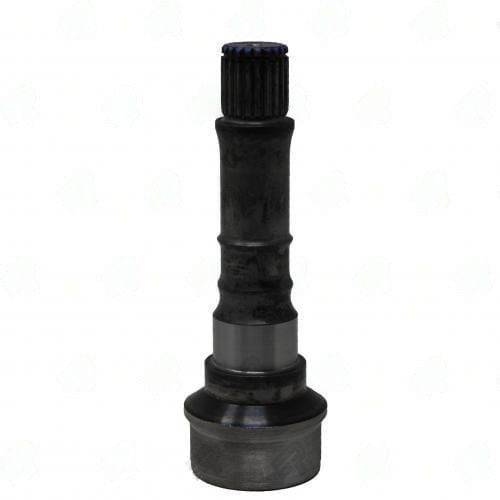

1453-861 – Stub Midship Shaft – Bearing Dia 1.181″ – Butt Dia 1.844″ – End To Weld 5.395
$86.81
1 in stock
14
People watching this product now!
Description
1453-861 stub midship shaft — CVJ style. Bearing dia: 1.181″. Butt: 1.844″. Splines: 21 x 0.900″. End-to-weld: 5.395″. Tube: 2.000″ x 0.083″.
Full Description
The 1453-861 uses a 2.000" OD tube with 0.083" wall and 1.844" butt diameter. The 1.844" butt fits a 2.000" OD x 0.083" wall tube bore (approximately 1.834" ID), maintaining the standard 0.010" clearance for fit. The mating component is 1452-8602.
Within the 1453-86X series, the tube diameter and wall thickness distinguish the variants: 2.000" OD at 0.083" wall (this unit, 861) or 0.065" wall (860), and 2.500" OD at 0.065" wall (862). All four share the same 1.181" bearing, 21 x 0.900" splines, 5.395" end-to-weld, and 0.931" spline length.
| Specification | Value |
|---|---|
| Part Number | 1453-861 |
| Style | CVJ |
| Bearing Diameter | 1.181" |
| Butt Diameter | 1.844" |
| Tube OD | 2.000" |
| Tube Wall | 0.083" |
| End-to-Weld | 5.395" |
| Spline | 21 x 0.900" |
| Spline Length | 0.931" |
| Mating Yoke | 1452-8602 |
Selection guide for the 1453-86X series: measure tube OD first (2.000" or 2.500"), then measure tube wall (0.065" or 0.083"). These two measurements uniquely determine the correct variant. No other dimension in the series varies between the sub-variants.
Additional information
| Bearing dia | 1.181 |
|---|---|
| Butt dia | 1.844 |
| End to weld | 5.395 |
| Notes | USED WITH: 1452-8602 |
| Partn number | 1453-861 |
| Splines count dia | 21 X 0.900 |
| Splines length | 0.931 |
| Tube dia | 2.000 |
| Tube wall | 0.083″ |
| Style | CVJ |
