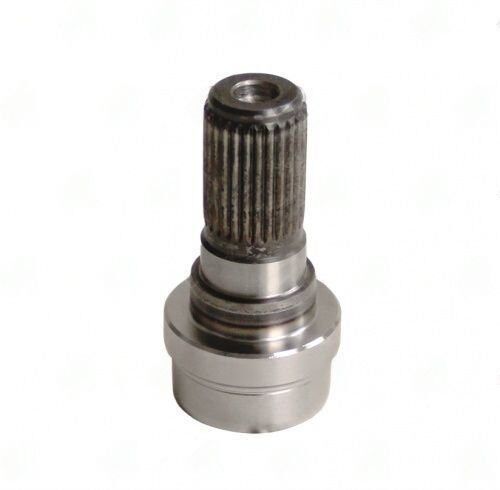

1453-261 – Stub Midship Shaft – Bearing Dia 1.181″ – Butt Dia 1.812″ – End To Weld 3.227
$80.77
1 in stock
17
People watching this product now!
Description
1453-261 UDS splined midship shaft. Splines 26 X 1.129, fits 2.000 x 0.095″ tube, 1.181″ bearing journal. Verify slip yoke splines match before assembly.
Full Description
1453-261 UDS Splined Midship Tube Shaft
The 1453-261 is a splined midship tube shaft manufactured by UDS. In a two-piece driveshaft assembly, the midship shaft occupies the center section: one end carries the splined bore that accepts a slip yoke, and the other end connects to a U-joint. The shaft is welded into a driveshaft tube.
The spline specification is 26 X 1.129 — the slip yoke that slides onto this shaft must have an identical spline count and diameter. The shaft is designed to fit inside a 2.000 x 0.095" tube with a butt diameter of 1.812 inches at the weld joint. The end-to-weld dimension is 3.227 inches. The 1.181-inch bearing journal accepts the center support bearing — verify the bearing inner bore matches this diameter. Note: USED ON MERKUR SHAFTS, USED WITH: 1404-261.
Specifications
- Part Number: 1453-261
- Brand: UDS
- Bearing dia: 1.181
- Butt dia: 1.812
- End to weld: 3.227
- Notes: USED ON MERKUR SHAFTS, USED WITH: 1404-261
- Splines count dia: 26 X 1.129
- Splines length: 1.552
- Tube dia: 2.000
- Tube wall: 0.095"
- Style: FIXED
Fitment & Installation Notes
Verify the slip yoke splines match the 26 X 1.129 specification on the 1453-261 before assembly. The tube OD must be 2.000 to accept this shaft correctly. If replacing a worn midship shaft, inspect the center support bearing simultaneously.
Browse related Stub & Midship Shafts for two-piece driveshaft applications.
Additional information
| Bearing dia | 1.181 |
|---|---|
| Butt dia | 1.812 |
| End to weld | 3.227 |
| Notes | USED ON MERKUR SHAFTS, USED WITH: 1404-261 |
| Partn number | 1453-261 |
| Splines count dia | 26 X 1.129 |
| Splines length | 1.552 |
| Tube dia | 2.000 |
| Tube wall | 0.095″ |
| Style | FIXED |
