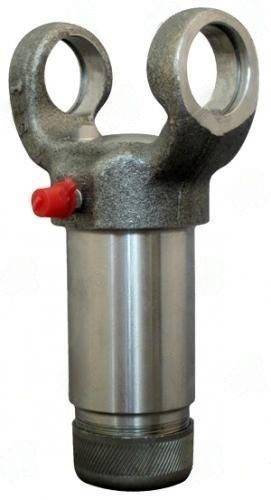

1403-16 – Slip Yoke – 1100 Series – 1.063″ Splines Dia – Center U Joint To End 4.313
$64.36
3 in stock
19 People watching this product now!
Description
1100 series 1403-16 slip yoke. 1.063 x 16 spline | 4.313″ CL-to-end. Slides onto transmission output shaft — spline-specific fitment.
Full Description
The 1403-16 slip yoke engages the transmission output shaft and allows the driveshaft to change effective length as the drivetrain moves. Worn splines here cause vibration and noise.
1403-16 Slip Yoke -- Fit & Dimensions
The 1403-16 slip yoke: 1.063 x 16 spline | 4.313" CL-to-end. brisitish imports.
The 1100 series is the standard for light PTO and agricultural drive applications. Spline count and diameter both have to match. The center-to-end length determines your driveshaft travel range -- measure your driveshaft compressed and extended length if you're unsure.
Key Features
- Series: 1100 -- light PTO and agricultural drive applications
- Spline: 1.063 x 16 -- must match transmission output shaft exactly
- CL-to-end: 4.313" -- determines driveshaft travel range, critical on lifted vehicles
- Note: brisitish imports
Specifications
- SKU: 1403-16
- Brand: UDS
- Series: 1100
- Spline Dia: 1.063
- Spline Count: 16
- CL to End: 4.313"
- Notes: brisitish imports
Additional information
| Center u joint to end | 4.313 |
|---|---|
| Notes | brisitish imports |
| Partn number | 1403-16 |
| Series | 1100 |
| Splines count | 16 |
| Splines dia | 1.063 |
