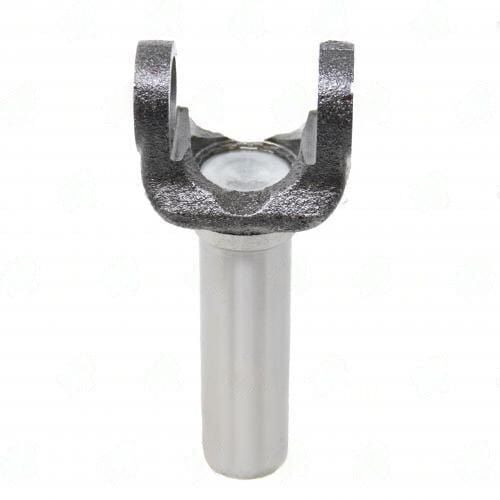

2303-22 – Transmission Yokes – 2351-20 Series – 20/22 X0.985 Splines – 1.258″ Hub Dia
$67.15
1 in stock
18 People watching this product now!
Description
2303-22 UDS 2351-20 series slip yoke. Splines: 20/22 X0.985, CJ-to-end: 5.750″. Verify stop shaft spline count and diameter before ordering.
Full Description
2303-22 UDS 2351-20 Slip Yoke
The 2303-22 is a 2351-20 series slip yoke manufactured by UDS. The slip yoke slides over the stop shaft — the splined stub welded onto the front section of the driveshaft tube — and telescopes in and out as the suspension cycles. This allows the driveshaft to change working length without binding.
The spline bore is 20/22-inch diameter with 0.985 splines. The stop shaft on the driveshaft tube must have an identical 20/22-inch diameter and 0.985-spline profile — a mismatch in either count or diameter means the yoke will not engage. The centerline-to-end dimension is 5.750 inches, measured from the U-joint centerline to the open end of the spline bore. This controls minimum engagement depth under full suspension droop — ensure sufficient spline overlap remains at maximum driveshaft extension. TOYOTA. The 2351-20 series is designed for the specified application range.
Specifications
- Part Number: 2303-22
- Brand: UDS
- Series: 2351-20
- Center u joint to end: 5.750
- Counter bore dia: 0
- Hub dia: 1.258
- Notes: TOYOTA
- Splines count dia: 20/22 X0.985
Fitment & Installation Notes
When selecting the 2303-22, verify the stop shaft spline count and diameter match the 20/22 X0.985 specification. Inspect the stop shaft for wear or damage; a worn shaft will produce lash even with a new yoke.
View the full range of Transmission Yokes in 2351-20 and adjacent series configurations.
Additional information
| Center u joint to end | 5.750 |
|---|---|
| Counter bore dia | |
| Hub dia | 1.258 |
| Notes | TOYOTA |
| Partn number | 2303-22 |
| Series | 2351-20 |
| Splines count dia | 20/22 X0.985 |
