TY110602 – TY150084.2 Weld Tube Yoke 1500 Series , Fits : 3.540 SOLID BUT , Butt dia: 3.237 U-Joint 39.7 x 115.9

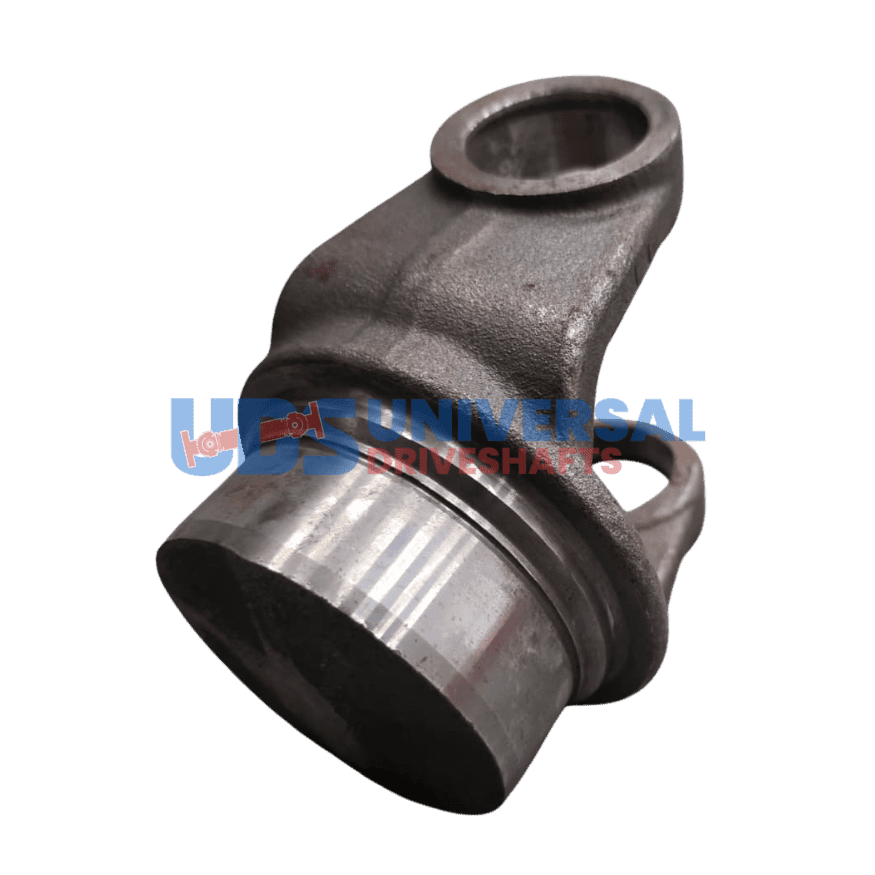

TY110602U UDS 1500 Series Weld Tube Yoke

The TY110602U is a 1500 series weld tube yoke manufactured by UDS. It is constructed with a solid butt and is machined to fit a tube OD of 3.54 inches with a wall thickness of 0.138 inches. The butt diameter measures 3.237 inches, and the centerline of the U-joint to the weld end is 3.190 inches. This yoke mates with a U-joint of 39.7 x 115.9 cap dimensions.

Specifications

• Part Number: TY110602U
• Brand: UDS
• Series: 1500
• Tube OD x Wall: 3.540" x 0.138"
• Butt Diameter: 3.237"
• Center U-Joint to Weld: 3.190"
• Material: Steel
• Notes: Solid Butt

When fitting the TY110602U, confirm the tube OD is 3.540 inches and wall is 0.138 inches before welding. The solid butt construction means there is no hollow bore at the butt end — the butt seats flush against the tube face. This geometry is common in heavy-duty applications where a full cross-section weld is required for structural integrity. The 1500 series occupies the upper-mid capacity range in the SAE heavy-duty lineup, above the 1480 and below the SPL55. Verify the mating U-joint uses 39.7 x 115.9 cap dimensions before assembling the TY110602U into your driveline.
